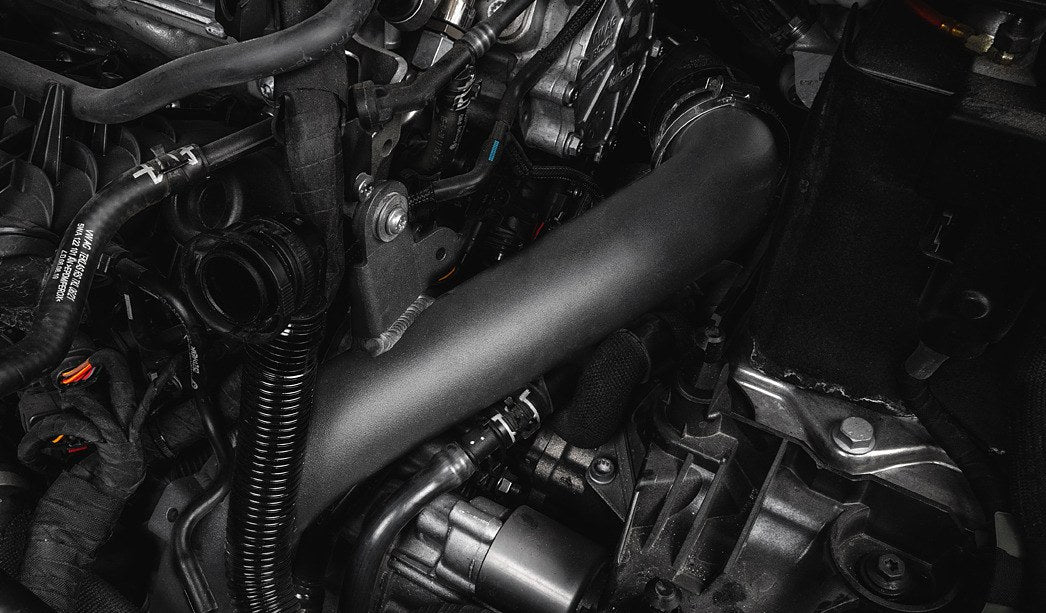

13% MORE FLOW OFF THE TURBO

The stock turbo outlet pipe on your MK8 GTI, Golf R or 8Y S3 is pinched plastic with tight bends at the most critical point in the charge system. The iE Turbo Outlet Pipe replaces it with mandrel bent, TIG welded aluminum at a constant diameter for a 13.44% increase in flow over stock, right out of the turbocharger.

13% MORE FLOW OFF THE TURBO

CONSTANT DIAMETER

Flow-killing bends and pinched walls are gone. The iE pipe holds a constant diameter from the turbo to the hose for the cleanest air path possible, cuts turbulence directly off the compressor, and takes full advantage of every bit of available space.

CONSTANT DIAMETER

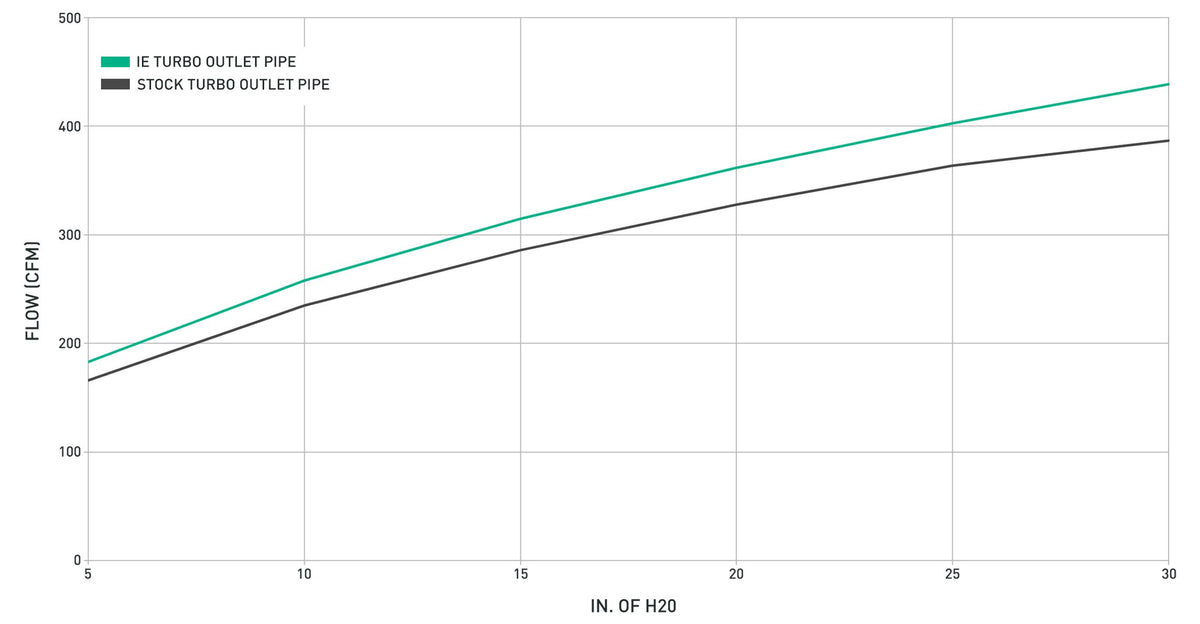

FLOW RESULTS

Back-to-back flow bench testing against the stock turbo outlet pipe.

13.44% MORE FLOW

13.44% MORE FLOW

iE turbo outlet pipe versus stock in CFM across pressure drop. The factory plastic pipe is a restriction in a performance build and a crack risk under heavy boost.

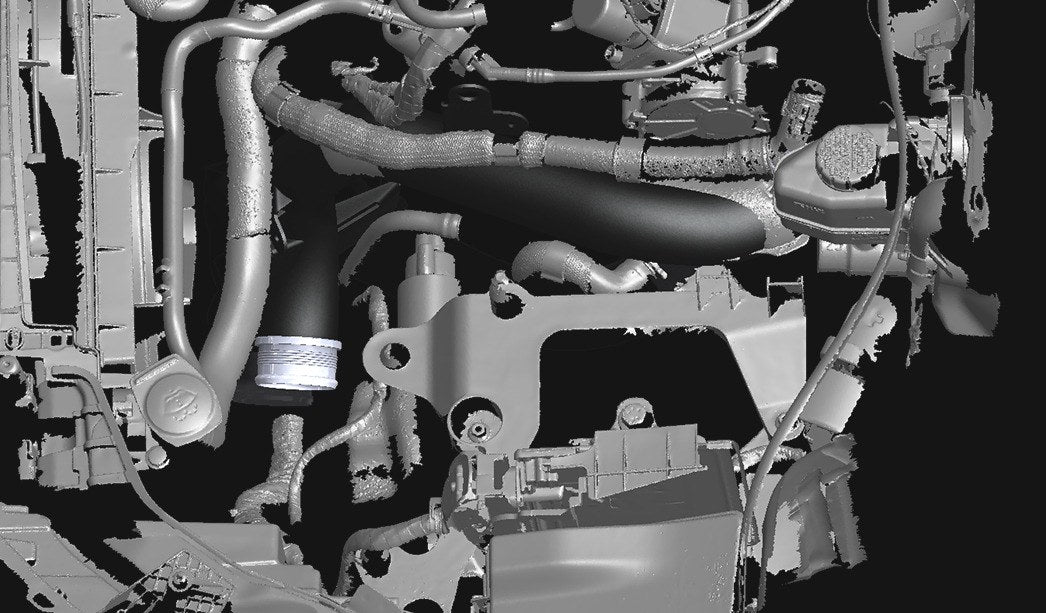

DESIGNED IN THE BAY

DESIGNED IN THE BAY

3D scanned and modeled in the real MK8 engine bay so the pipe uses the space without touching anything.

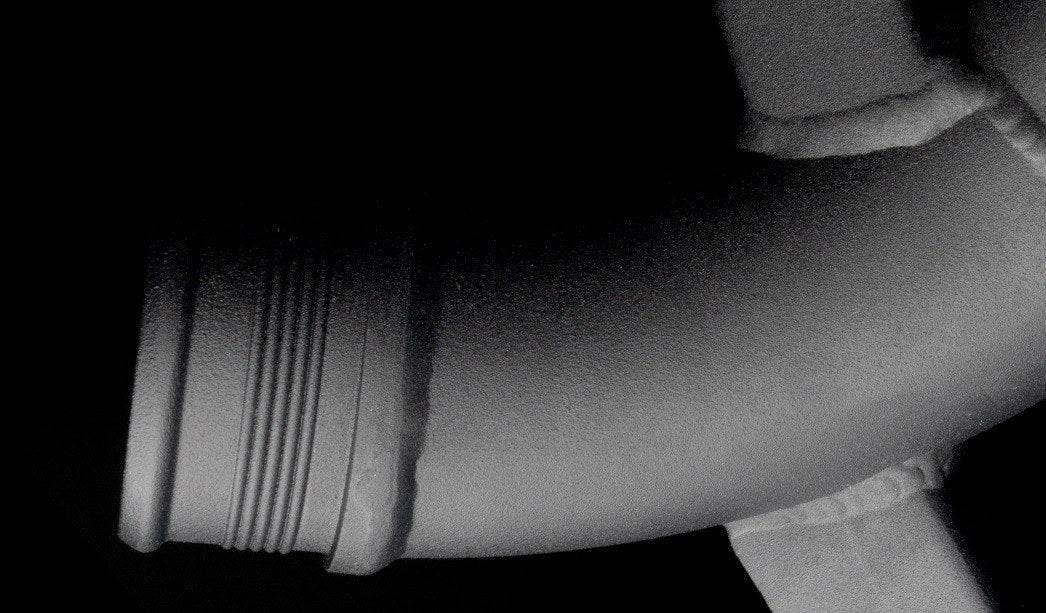

CNC HOSE ENDS

Most aftermarket pipes bead-roll thin-wall tube for the hose connection, which crushes when you tighten the clamp and leaks boost. Ours use thick-wall CNC machined aluminum ends, TIG welded to the pipe, with grip-lock ribbing and a true radius edge. Crush-proof and leak-free.

CNC HOSE ENDS

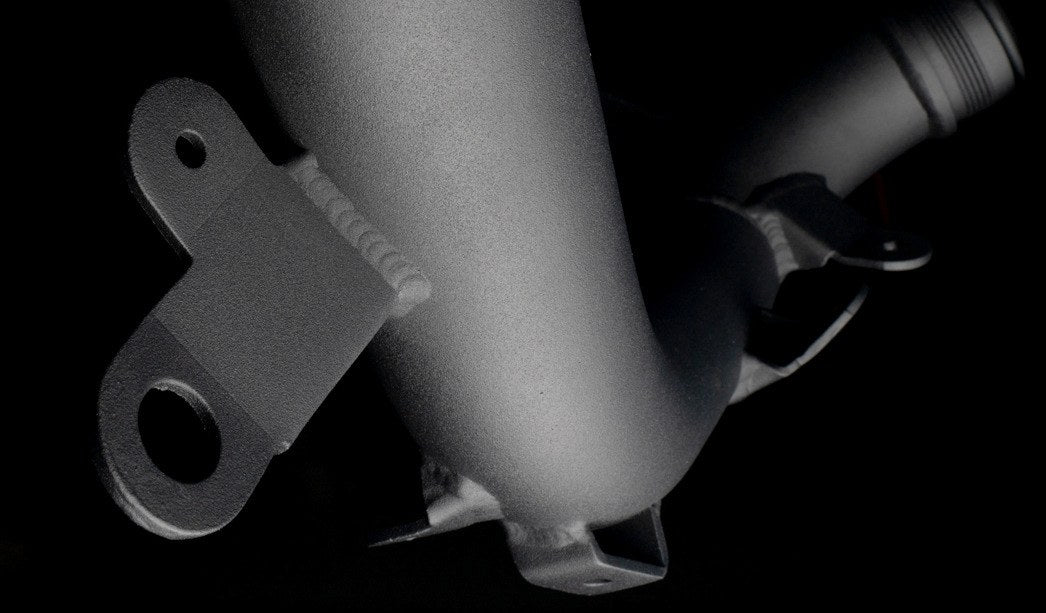

INTEGRATED MOUNT POINTS

Using 3D scanning and modeling, iE engineers kept every factory mount point on the design. TIG welded brackets retain the harness, coolant line and clip mounts, so nothing is left hanging or rubbing. It installs like a factory part in black powder coat.

INTEGRATED MOUNT POINTS

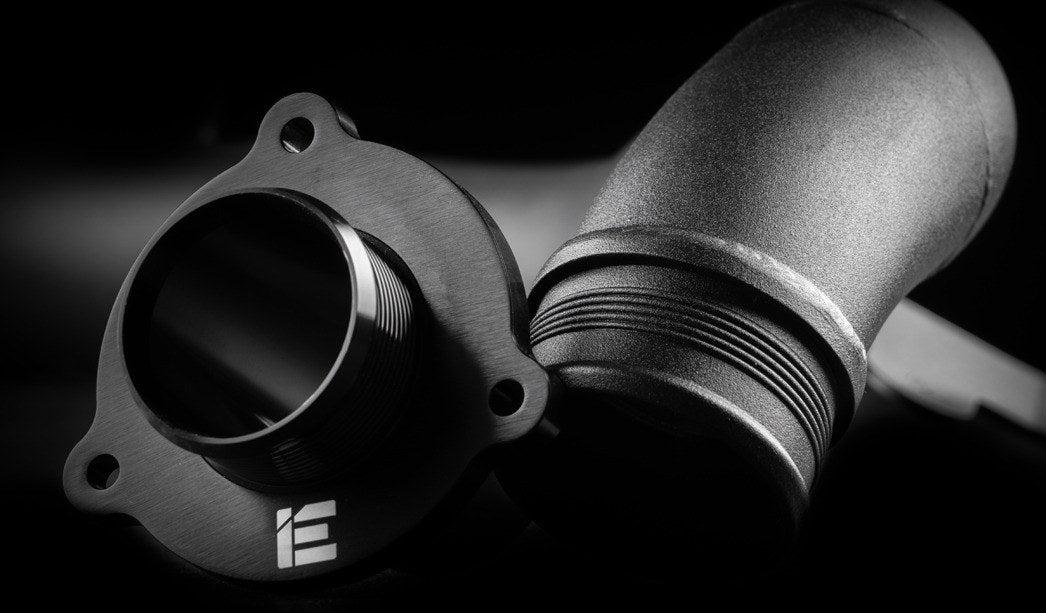

OPTIONAL TURBO MUFFLER DELETE

On GTI engines, removing the stock outlet pipe gives you easy access to the restrictive factory turbo muffler. It is the perfect time to fit the iE Turbo Muffler Delete for a smooth, uninterrupted path out of the turbo and the boost sound enthusiasts love. Sold separately. Golf R and S3 turbo mufflers are built into the factory outlet pipe, so the muffler delete does not apply to those cars.

OPTIONAL TURBO MUFFLER DELETE

INSTALL GUIDE

Difficulty

photosphotosIntermediate

Time

photos Around 2 hours

Download Pdf

Enjoy a quick and hassle-free DIY install. Basic hand tools are all that is needed for this one. You got this.

WE GOT YOU

Have questions about tuning your Audi with iE? Our in-house team of Mod Gurus are serious motorheads with big brains and the know-how to steer you right.

Let’s Connect

COMPATIBILITY

YEAR MAKE MODEL ENGINE DRIVE
2022+ VW Golf R (MK8) 2.0T EA888 Gen 4 AWD
2022+ VW GTI (MK8) 2.0T EA888 Gen 4 FWD
2022+ Audi S3 (8Y) 2.0T EA888 Gen 4 AWD
img FITMENT NOTES

MK8 Golf R and 8Y S3 turbo mufflers are built into the factory turbo outlet pipe and are not compatible with the iE Turbo Muffler Delete add-on.

FAQs

Do I need a tune?

No. The outlet pipe works on stock software. Tuned cars running more boost see the biggest gains from the extra flow.

Does it fit the Golf R and S3?

Yes. It fits MK8 Golf R, MK8 GTI and 8Y S3. On the R and S3 the turbo muffler is built into the factory pipe, so this part removes it. The separate Turbo Muffler Delete is for GTI only.

Should I add the Turbo Muffler Delete?

On a GTI, yes. The muffler is right there once the outlet pipe is off, and both parts install in the same job.

Will it leak boost?

No. Thick CNC machined hose ends with grip-lock ribbing are crush-proof, so the clamps bite without deforming the pipe.

How long is the install?

Around 2 hours with basic tools. It requires removing the belly pan, plastic mount clips and the radiator fan. No permanent modifications.

YOUR NEXT MOD

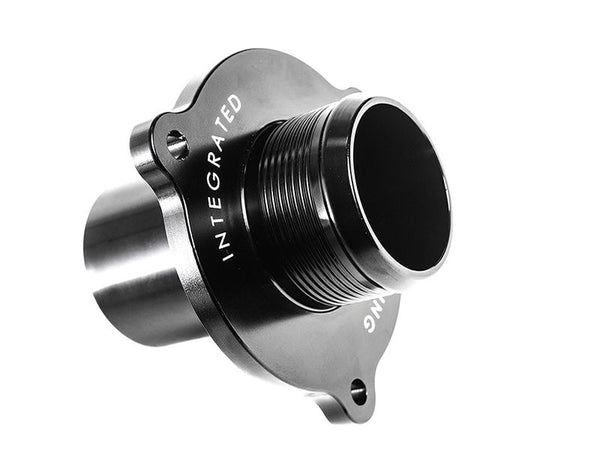

IE Turbo Outlet Muffler Delete for VW MK7/MK7.5 & Audi 8V/8S 2.0T Engines
