IE VW & Audi 2.0T TSI Gen 3 IS38 MQB Performance ECU Tune | Fits MK7 Golf R and 8V S3
IE VW & Audi 2.0T TSI Gen 3 IS38 MQB Performance ECU Tune | Fits MK7 Golf R and 8V S3

IE VW & Audi 2.0T TSI Gen 3 IS38 MQB Performance ECU Tune | Fits MK7 Golf R and 8V S3

Rated 4.9 out of 5
Based on 116 reviews

IESOVN21

Sale price £497.25 Save £0.00
In Stock

Free standard shipping in US for orders over $299

Inject some adrenaline and excitement into your right foot by adding serious power to your 2015-2021 VW Golf R or Audi S3. In only minutes from your own phone, you can unleash your engine's performance Get ready to blow away the competition and transform your peppy 2.0T into a powerhouse monster!

APPLE & ANDROID
MOBILE APP

BLUETOOTH TUNING

UP TO
490HP & 493TQ

POWER YOU CAN FEEL

INCLUDES
FUEL OPTIMIZED

91, 93, 104, & ETHANOL

LEADING FEATURES

  • Horsepower & torque gains maximized
  • Includes Apple & Android Mobile Flashing
  • Stock boost control optimized for all conditions
  • 91, 93, & 104 pump octanes available (95, 98, & 108 RON)
  • Optional TrueFlex adapts from 91 pump all the way to full E85
  • Includes optional High Torque & Low Torque files
  • Rev limiter increased to 7000 RPM (with DSG flash)
  • Launch control torque increased for faster launches
  • Brake boosting enabled for rolling launches
  • Road speed limiters removed
  • Exhaust Crackle feature available for Stage 2
  • Engineered for all climates and elevations

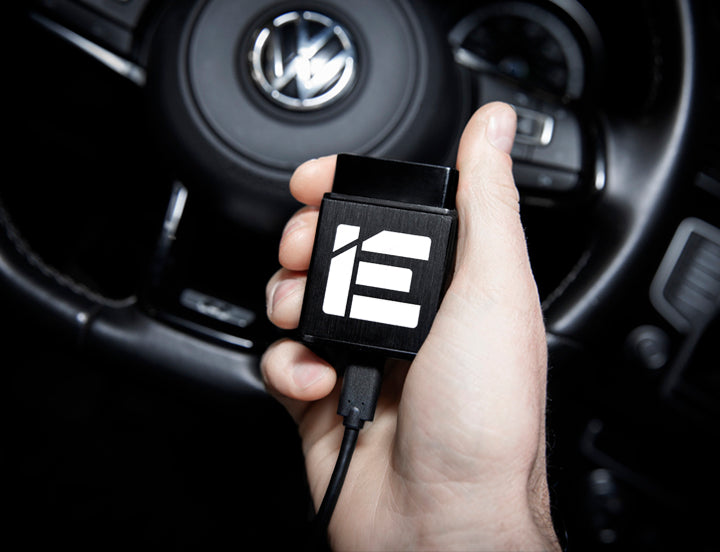

  • Direct port OBDII at-home flashing
  • Easy octane switching takes only minutes
  • Upgrade stages to match hardware upgrades

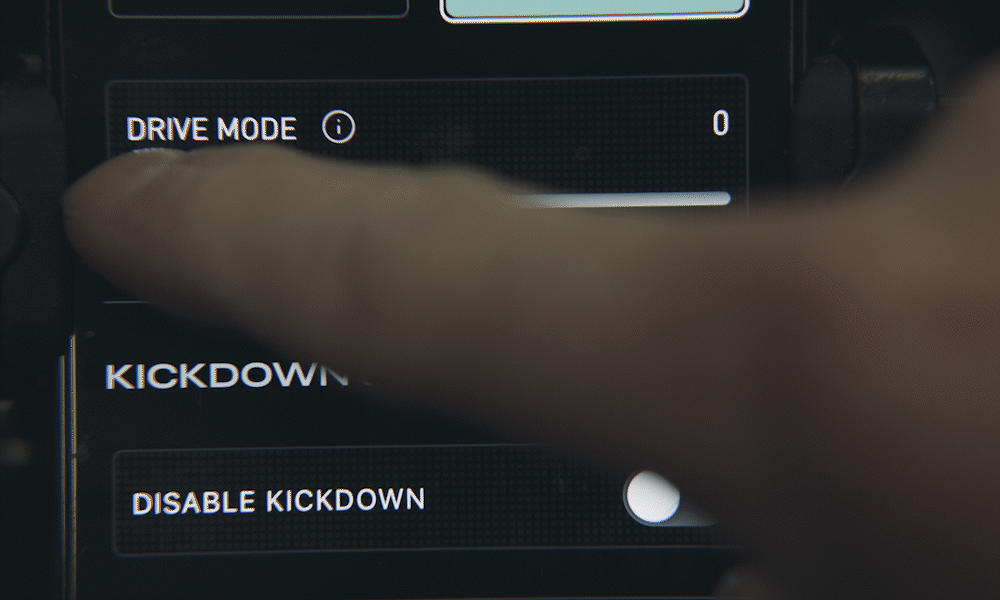

  • Simple on/off feature toggling with POWERlink
  • Read and clear diagnostic/problem codes
  • Easy to use Data-logger

MK7 IS38 STAGE 1

IE Stage 1 ECU calibration dramatically increases performance leaving no hidden power on the table, and safely maxes out the factory turbocharger's horsepower & torque capability. Engineered to operate on entirely stock hardware and compatible with basic bolt-ons (intake, turbo inlet, intercooler).

See the performance tab for power and dyno results

MK7 IS38 STAGE 2

IE Stage 2 software is for full bolt-on stock turbo builds running an aftermarket racing downpipe and catalyst. IE calibrators use advanced tuning strategies to extract additional power and account for the increased flow from an upgraded downpipe and performance hardware. The required hardware upgrades for stage 2 will increase airflow, exhaust flow, lower intake air temps, provide faster IAT recovery, and produce an overall more efficient and faster vehicle on the stock turbocharger. See below for a complete list of Stage 2 requirements.

Upgrading from Stage 1 to Stage 2 or beyond is easy! With IE, you only pay the difference in tune cost with no extra fees. When you install the required matching hardware, follow the instructions on your IE POWERlink app to purchase the tune upgrade, and you will be blowing away the competition in minutes!

HIGH/LOW TORQUE FILES

IE High Torque ECU calibrations maximize power gains throughout the entire powerband which quickly exceeds the torque limitations of the factory DSG calibration (auto trans) or the stock clutch (manual trans) that leads to clutch slipping. Stage 1 and Stage 2 files include optional Low Torque files for vehicles with stock DSG tune or stock clutch. Both high and low torque files are included and can be switched between as often as you like.

High Torque files require the additional purchase of a DSG transmission tune or clutch upgrade.


FEATURES & OPTIONS

TRUEFLEX ETHANOL

E85 fuel unlocks the most performance potential from our ECU tunes for your Golf R or S3 Gen 3 engine. Ethanol contains tons of oxygen, burns cooler, and has a high resistance to knock. This provides more horsepower and torque than running conventional gasoline and is more readily available (in most states) and less expensive than race gas. IE TrueFlex tunes take this a step further and allow for 91 octane all the way up to full E85 or anything in between on one tune without the need to reflash! TrueFlex is an included option with all stages.

Click the TrueFlex tab above to learn more about this exciting feature

INCREASED RPM

To take advantage of the new larger power band, factory rev limits have been raised to 7000RPM in all stages. On DSG equipped cars, the transmission will shift slightly before the new engine RPM (6900RPM).

DSG Tune is required to unlock higher RPM.

BRAKE BOOST

Brake Boosting provides a competitive edge in a roll racing scenario. While maintaining a constant speed and throttle position, apply brake pressure with the left foot to build boost at speed resulting in a rolling launch when brake pressure is released.

EXHAUST CRACKLE

Enabling the Exhaust Crackle feature will add a motorsport-inspired crackle sound to your exhaust note when you free-rev the engine or decelerate. This feature can be flashed on or off at will with your IE POWERlink.

For the most aggressive pops and bangs an aftermarket catback system is recommended.


STAGE 1 & 2 HARDWARE GUIDE

PART UPGRADE STAGE1 STAGE 2

DSG TUNE OR CLUTCH UPGRADE

REQUIRED FOR HIGH TORQUE FILES

REQUIRED

AIR INTAKE

HIGHLY RECOMMENDED

REQUIRED

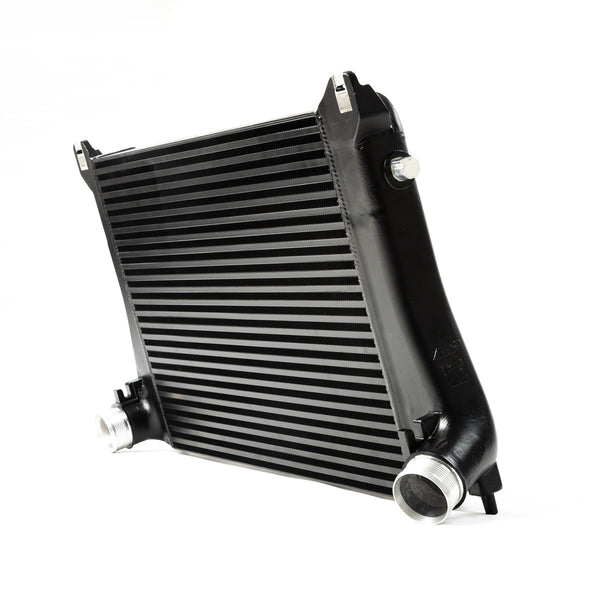

INTERCOOLER

OPTIONAL

HIGHLY RECOMMENDED

TURBO INLET PIPE

OPTIONAL

HIGHLY RECOMMENDED

HPFP UPGRADE

REQUIRED FOR TRUEFLEX ONLY

REQUIRED FOR TRUEFLEX ONLY

TRUEFLEX SENSOR & HARNESS

REQUIRED FOR TRUEFLEX ONLY

REQUIRED FOR TRUEFLEX ONLY

DOWNPIPE

NOT COMPATIBLE

REQUIRED

CATBACK EXHAUST

OPTIONAL

OPTIONAL

DOWNPIPE NOTICE: BY PURCHASING A MOTORSPORT/RACING PRODUCT ("PRODUCT"), YOU REPRESENT THAT YOU UNDERSTAND AND AGREE THAT: THE PRODUCT IS NOT DESIGNED TO MEET ANY APPLICABLE EMISSIONS STANDARDS, WHETHER IN THE USA OR OTHERWISE, THE PRODUCT IS NOT C.A.R.B. COMPLIANT, AND THAT THE PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA, USA NOR ANY OTHER JURISDICTION WHERE THE SALE OR USE IS PROHIBITED BY LAW. INTEGRATED ENGINEERING, LLC MAKES NO REPRESENTATIONS, WARRANTIES, OR CLAIMS THAT THIS PRODUCT COMPLIES WITH ANY APPLICABLE EMISSIONS LAWS AND EXPRESSLY DISCLAIMS ANY AND ALL SUCH REPRESENTATIONS, WARRANTIES, AND CLAIMS, WHETHER EXPRESS OR IMPLIED. BY PURCHASING THIS PRODUCT, YOU REPRESENT, WARRANT, AND AGREE THAT IT IS YOUR RESPONSIBILITY TO INFORM YOURSELF OF ANY LAWS OR REGULATIONS THAT MAY APPLY TO YOUR PURCHASE AND/OR USE OF THE PRODUCT.

STAGE 1 & 2 FITMENT GUIDE

MAKE MODEL YEAR GENERATION

VW

Golf R

2015-2021

MK7/MK7.5

AUDI

S3

2015-2021

8V/8V.5

IE tune support is not available for many Audi TTS ECUs. Please contact us with your ECU box code to confirm compatibility before ordering.

" This tune is incredible
-Tom T.

" Extremely powerful
-Dwayne F

" This tune is the best
-Zachary

LEADING FEATURES

  • Up to 492HP & 500TQ
  • Complete Garrett GT2260S turbo tuning suite
  • 91, 93, & 104 pump gas fuel maps
  • TrueFlex adapts from 91 up to E40 ethanol blend
  • Power increases throughout the powerband
  • Continues to produce power in the higher RPM range
  • Increased power with minimal added boost lag
  • Rev limiter increased to 7000 RPM (with DSG flash)
  • Optimized safely for factory engine internals
  • Launch control torque increased for faster launches
  • Brake boosting enabled for rolling launches
  • Road speed limiters removed
  • Optional exhaust Crackle feature
  • Engineered for all climates and elevations
  • Tune & turbo provides a bolt-in and go power

STAGE 3 GT2260S IS CURRENTLY AVAILABLE FOR 2015-2017 MODEL YEARS WITH NORTH AMERICAN ECUS ONLY

STAGE 3 GT2260S

IE Stage 3 GT2260S offers an easy upgrade to the bolt-on turbo with power levels delivering up to 492HP & 500TQ on pump gas! This advanced ECU calibration when combined with the Garrett turbocharger, HPFP upgrade, and stage 2 hardware (intake, intercooler, & downpipe) delivers deceivingly fast performance and exhilarating fun.

See the performance tab for full performance results and dyno charts

STAGE 3 GT2260S TRUEFLEX

Stage 3 GT2260S TrueFlex utilizes our flex-fuel sensor and harness kit to deliver race gas power on a cost-effective ethanol blend producing a heart-pounding 490HP & 493TQ! E40 is the highest blend available within the fuel system limitations providing the maximum performance numbers without pulling power for higher E%. TrueFlex will automatically adjust between 91 octane up to E40 ethanol blend. Ethanol content must not exceed the maximum E40 blend; an ethanol content sensor kit and gauge is highly recommended.

See the TrueFlex tab to learn more about this performance flex-fuel option

GARRETT POWERMAX TURBO

When selecting a turbocharger for the base of our Stage 3 ECU tuning, IE engineers and calibrators valued a large powerband of increased power without adding turbo lag. After extensive research and testing, the easy bolt-in design of the German-engineered GT2260S from Garrett proves itself as the optimal balance of increased top-end power, smooth power delivery, and responsive boost with unnoticeable lag over stock. Backed by Garretts reputaiton of reliability with over 65 years in leading the proffessional motorsport, aftermarket, and factory turbo applications. When combined with IE's calibration strategies, the result is modern street manners with truly addicting race-car performance.

TURBO SOLD SEPARATELY


GT2260S TUNE DEVELOPMENT

ADVANCED ENGINE MANAGEMENT

Installing your Garrett PowerMax GT2260S, IE Stage 3 ECU tune, and required hardware will deliver the maximum amount of power supported by the fuel system while staying well within the safe power limits of the stock engine internals. IE calibration and software engineers employed highly advanced tuning practices and equipment to develop a complete ground-up engine management system for the unique characteristics of the new boost profile and powerband. All performance calibrations and safety coding has been retained and rewritten for the substantial power gains from the larger Garrett turbocharger.

REAL-WORLD VERIFICATION

IE calibrators performed extensive mapping rework for the larger turbo. The countless testing hours of every tune iteration have gone through thousands of dyno tests, street-tested, pushed on the track and expanded to a large beta testing community. This testing process produces a massive library of data from various vehicles, fuels, climates, weather conditions, and altitudes. That data is then used to make numerous changes to the files to maximize performance and driving characteristics. In an early beta tune track test, the results proved to produce back-to-back 10 second quarter mile runs!


STAGE 3 GT2260S HARDWARE GUIDE

PART UPGRADE COMPATIBILTY

GARRETT POWERMAX GT2260S TURBO

REQUIRED

DSG TUNE OR CLUTCH UPGRADE

REQUIRED

AIR INTAKE

REQUIRED

INTERCOOLER

REQUIRED

HPFP UPGRADE

REQUIRED

DOWNPIPE

REQUIRED

TRUEFLEX SENSOR & HARNESS KIT

REQUIRED FOR TRUEFLEX ONLY

CATBACK EXHAUST

OPTIONAL

TURBO INLET PIPE

NOT COMPATIBLE (GT2260S includes proprietary turbo inlet)

STAGE 3 GT2260S FITMENT GUIDE

MAKE MODEL YEAR GENERATION

VW

Golf R

2015-2017

MK7

AUDI

S3

2015-2017

8V

IE Stage 3 tune support is not available for Audi TT & TTS ECUs.

*Stage 3 GT2260S tuning is currently expanded for North America (NA) ECUs. Rest-of-world (ROW) ECUs (Europe, Asia, Australia, etc.) may not be fully supported. Please contact IE Support before purchasing to verify your compatibility before ordering.
Early European Simos12 ECUs (5G0906259) can not be supported.

FULL E85 • PUMP FUEL • INSTANT ADAPTABILITY • ONE TUNE

INSTANT ADAPTABILITY

IE's TrueFlex unlocks the flexibility to run full E85 down to 91 octane gas and any mix in between on a single tune without the need to reflash the ECU. IE's software engineers and calibrators have developed our own advanced TrueFlex calibration, allowing the ECU to safely adjust for ethanol content down to the exact percentage in real-time. This powerful programming brings the ease and confidence to fill up at the pump and make the most power available from your fuel choice without having to drain, verify blends, or reflash the ECU.

E85 TrueFlex is an included option for all Sage 1 & 2 tunes and up to E40 on stage 3.

MAXIMUM PERFORMANCE

Factory equipped flex-fuel calibrations are designed to adjust for the cleanest emissions for different ethanol blends to get the highest MPG. This typically results in maximum timing for the lowest octane (91) across the entire range up to E85, leaving loads of untapped power on the table. IE TrueFlex is a complete performance adaptation that makes instant and continuous adjustments to performance maps such as boost and timing and releases the most available power for the fuel mix as it enters the cylinder.

RELIABLE ETHANOL

Not only does IE TrueFlex allow for amazing power potential, but it also offers the most safety from ethanol blends. The ability to truly meter and adjust for ethanol content allows the tune to instantly alter the ECU maps to keep the engine in the optimal range and protect from dangerous lean conditions. This offers amazing protection from pumps that may have lower than advertised ethanol content or if no ethanol is available. Fill up with the best quality fuel available to you, and let TrueFlex do the rest!

TRUEFLEX REQUIREMENTS

TRUEFLEX HARNESS

The EA888 Gen 3 2.0T engine is not equipped with any type of Flex Fuel systems from the factory and lacks the ability to sense fuel content. In order for IE's TrueFlex ECU tune to work, an IE TrueFlex Sensor Harness Kit is required. This easy to install harness kit installs a sensor capable of delivering instant fuel content data to the ECU calibration.

HPFP UPGRADE

Ethanol offers higher power output but also requires more fuel delivery than regular pump gas. The stock High Pressure Fuel Pump (HPFP) can not deliver enough fuel to support ethanol and must be upgraded. The IE HPFP Internal Upgrade Kit ensures there will be enough fuel supply for ethanol content to run reliably at all elevations and climate conditions safely.

TRUEFLEX FITMENT GUIDE

MAKE MODEL YEAR GENERATION

VW

Golf R

2015-2021

MK7

VW

S3

2015-2021

8V

IE TrueFlex tune support is not available for Audi TTS ECUs.

*TrueFlex tuning is currently expanded for North America (NA) ECUs. Rest-of-world (ROW) ECUs (Europe, Asia, Australia, etc.) may not be fully supported. Please contact IE Support before purchasing to verify your compatibility before ordering.
Early European Simos12 ECUs (5G0906259) can not be supported.

" Performance is astronomical
-Jarvis

" Car pulls and pulls
-Ben

" IE nailed it!!!!!!!
-David E

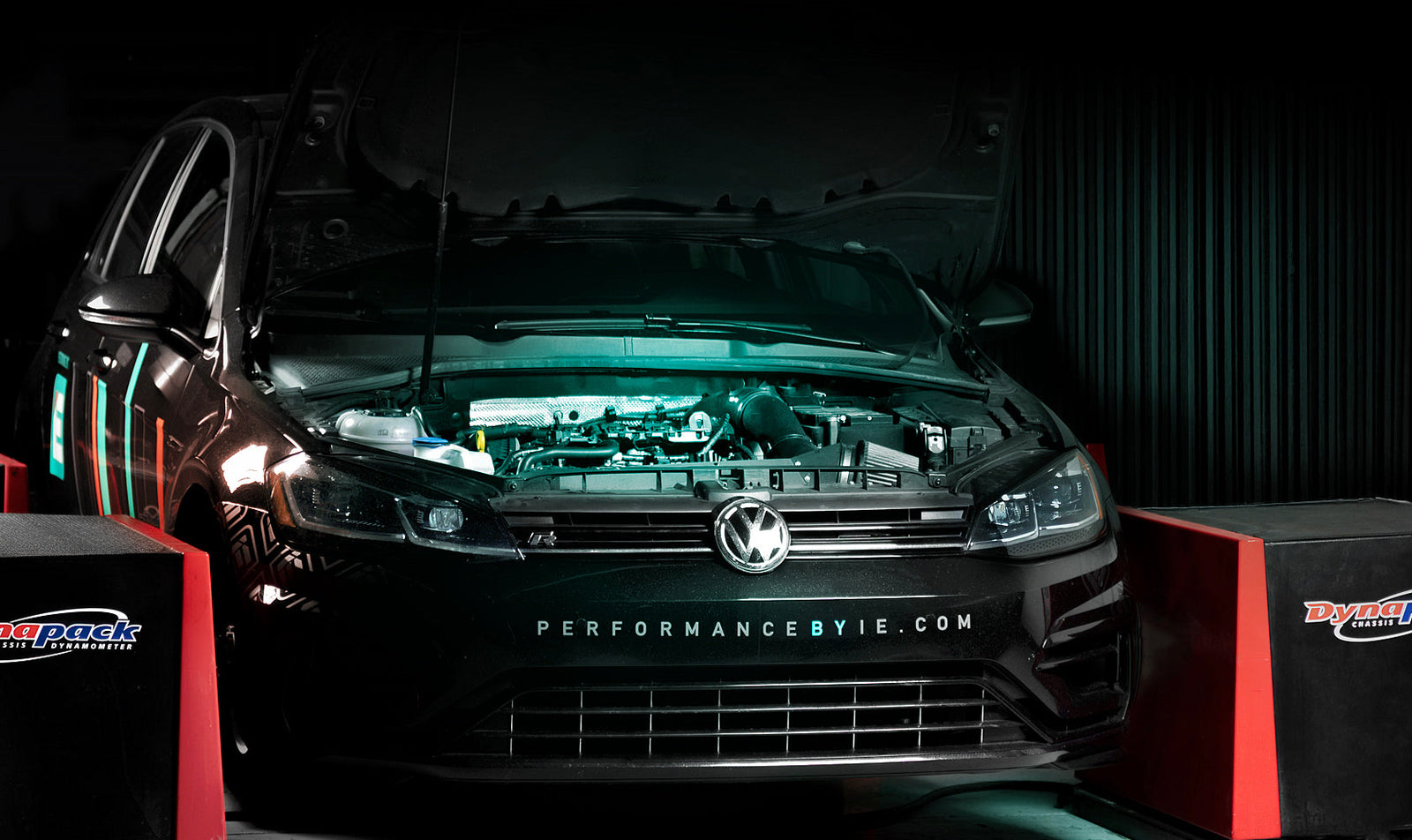

MAXIMIZED OUTPUT

IE ECU calibrations are dedicated to perfecting every section of the mapping to deliver a fully realized performance file right out of the gate. Maximized for full performance potential on the drag strip and road course while maintaining full comfort on your daily commute. Get ready to experience IE's Performance Software in only minutes from the comfort of your garage or driveway.

POWER GAINS

North American Region (NAR) = AKI / Rest Of World (ROW) = RON

2015-2018 MODEL YEARS

STAGE / FUEL HORSEPOWER TORQUE

Stock VW/ Audi advertised numbers

265 HP

280 FT-LBS

Stock IE dyno numbers

290 HP

301 FT-LBS

Stage 1 91 AKI / 95 RON

359 HP

377 FT-LBS

Stage 1 93 AKI / 98 RON

365 HP

380 FT-LBS

Stage 1 TrueFlex (full E85)

413 HP

429 FT-LBS

Stage 2 91 AKI / 95 RON

399 HP

426 FT-LBS

Stage 2 93 AKI / 98 RON

406 HP

432 FT-LBS

Stage 2 104 AKI / 108 RON

432 HP

467 FT-LBS

Stage 2 TrueFlex (full E85)

461 HP

484 FT-LBS

Stage 3 GT2260S 91 AKI / 95 RON

464 HP

477 FT-LBS

Stage 3 GT2260S 93 AKI / 98 RON

481 HP

489 FT-LBS

Stage 3 GT2260S 104 AKI / 108 RON

492 HP

500 FT-LBS

Stage 3 GT2260S TrueFlex (full E40)

490 HP

493 FT-LBS

2019-2021 MODEL YEARS

STAGE / FUEL HORSEPOWER TORQUE

Stage 1 91 AKI / 95 RON

359 HP

377 FT-LBS

Stage 1 93 AKI / 98 RON

365 HP

380 FT-LBS

Stage 1 TrueFlex (E60)

382 HP

404 FT-LBS

Stage 2 91 AKI / 95 RON

425 HP

460 FT-LBS

Stage 2 93 AKI / 98 RON

431 HP

466 FT-LBS

Stage 2 104 AKI / 108 RON

447 HP

484 FT-LBS

Stage 2 TrueFlex (E60)

445 HP

483 FT-LBS

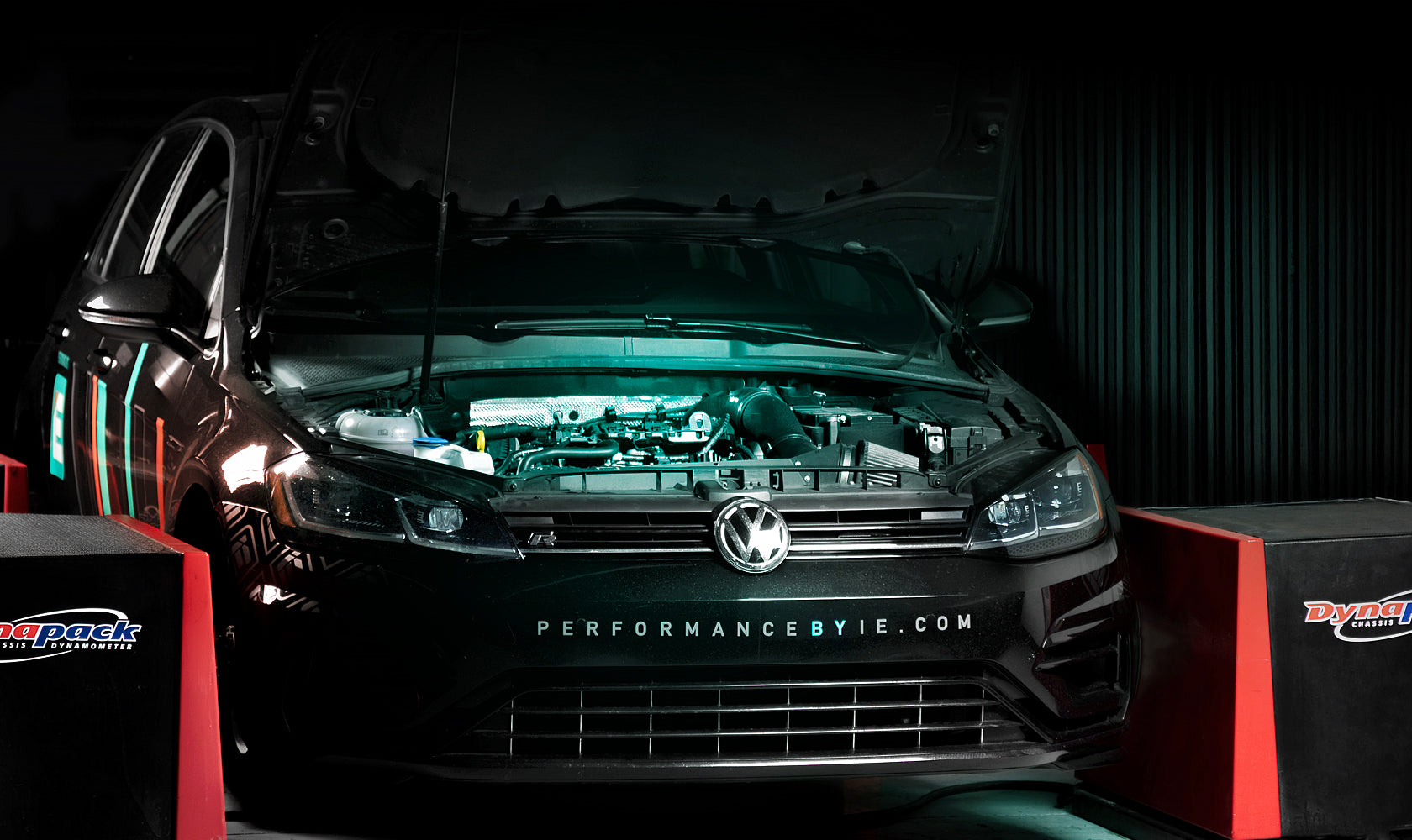

DYNO CHARTS

Dyno numbers are for reference against stock numbers only. Personal dyno results will vary depending on fuel quality, local conditions, dyno brand, and correction factors.

" Car pulls hard
-VW For Life

" In love with my car all over again
-Joseph

" Power difference is insane
-Brenton

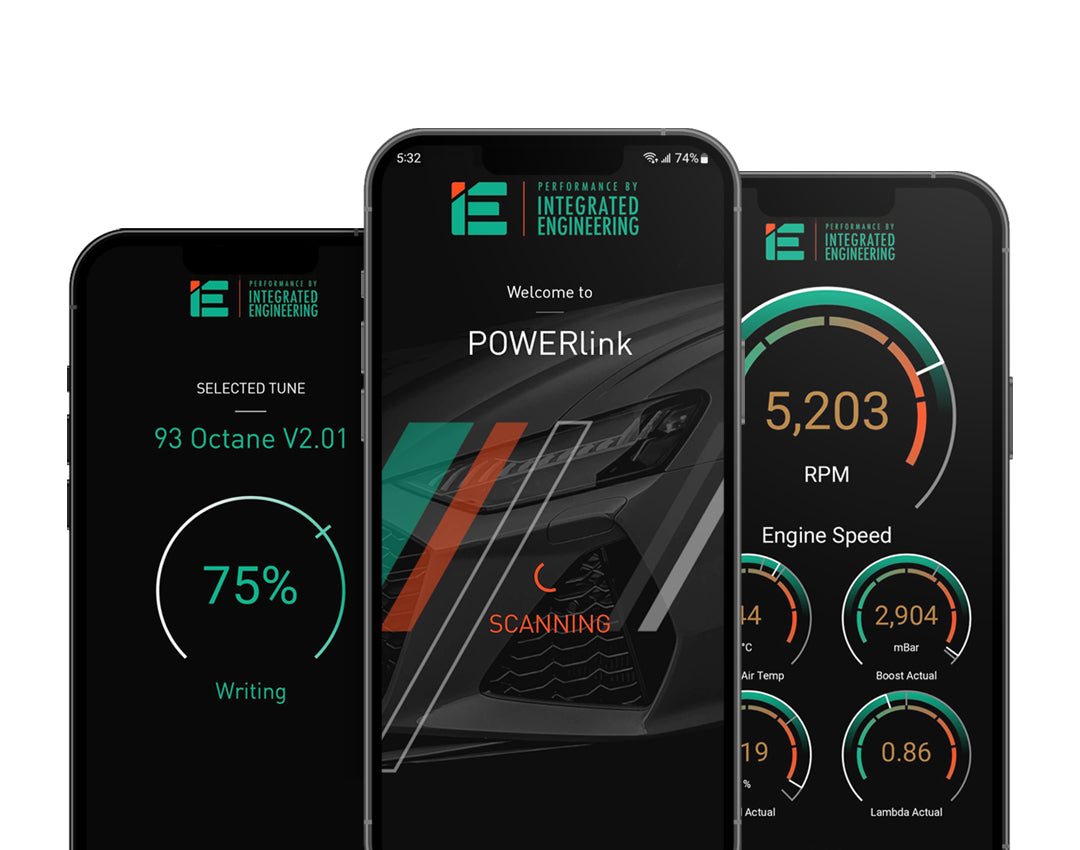

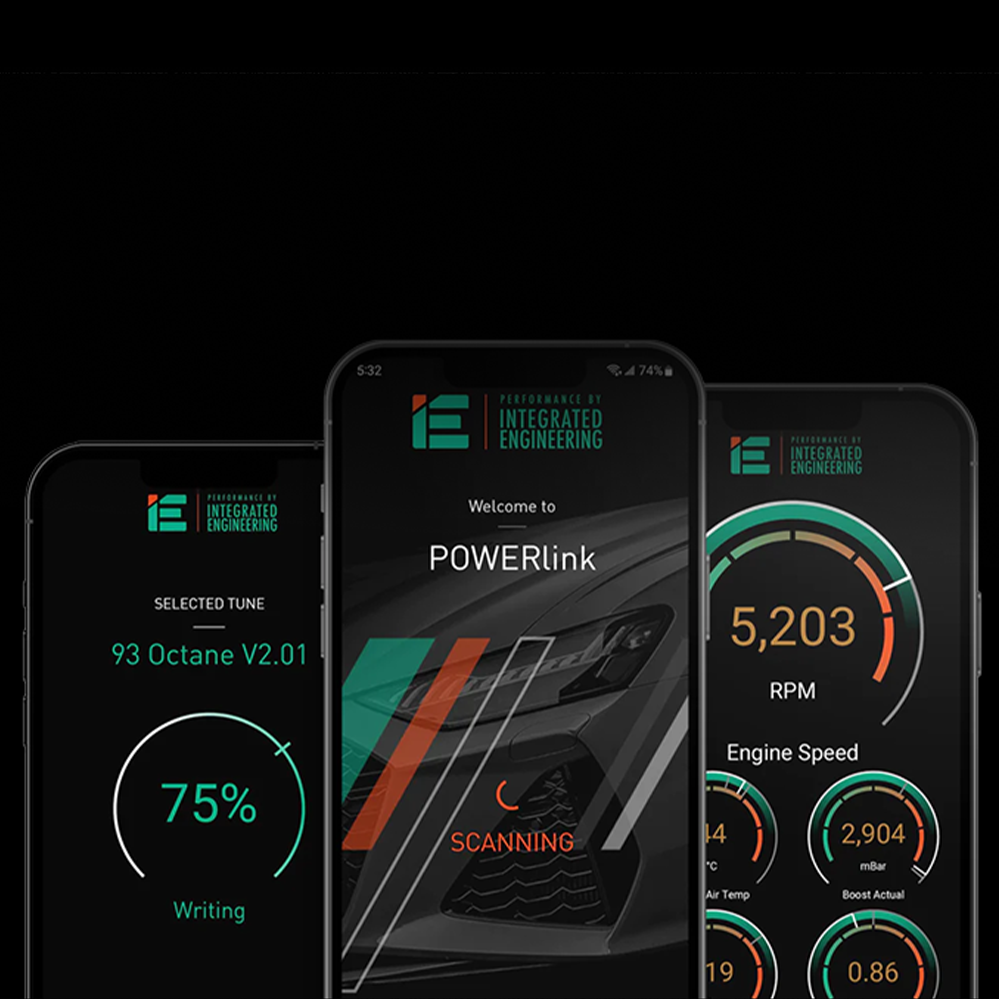

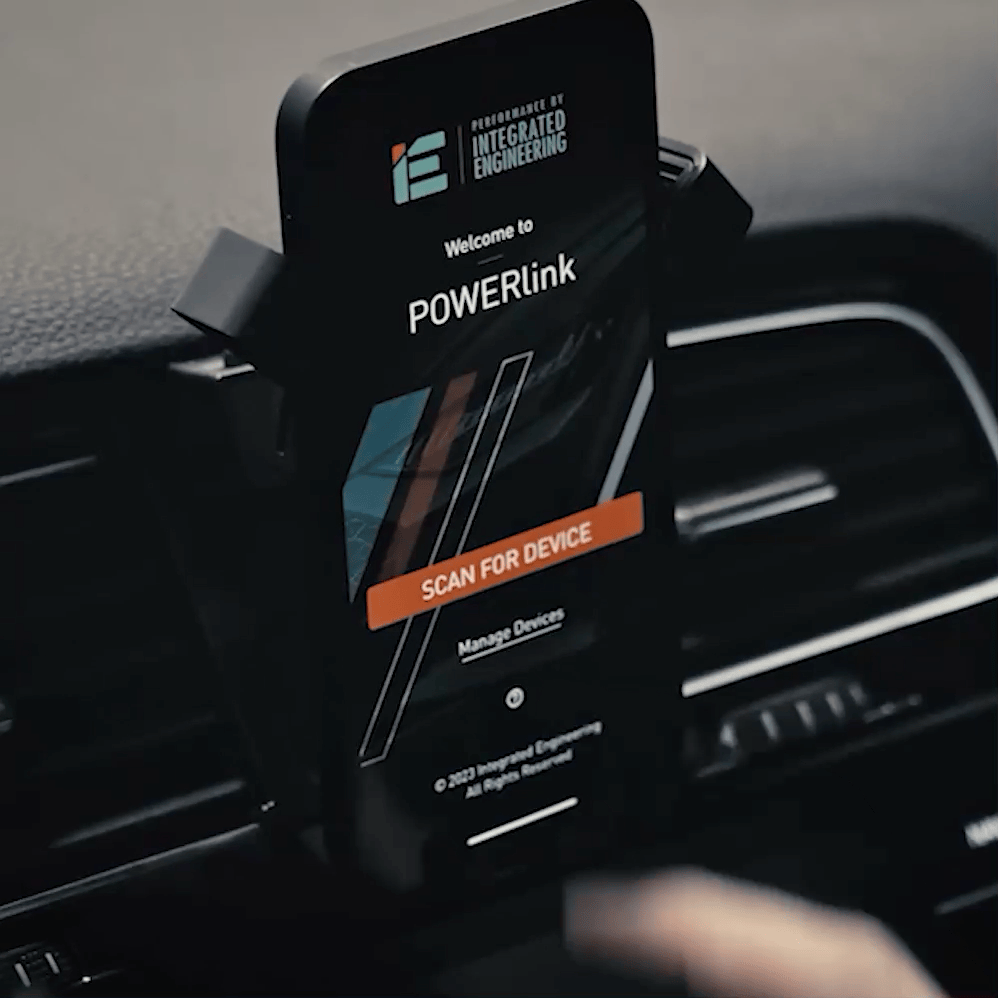

Add power to your Audi and experience the game-changing freedom of mobile flashing. The IE POWERlink cable and app connect to your Apple or Android phone, giving you the power to tune your car, change octanes, upgrade stages, perform diagnostics, monitor live gauge data, and more. All from the palm of your hand!

BLUETOOTH FLASHING

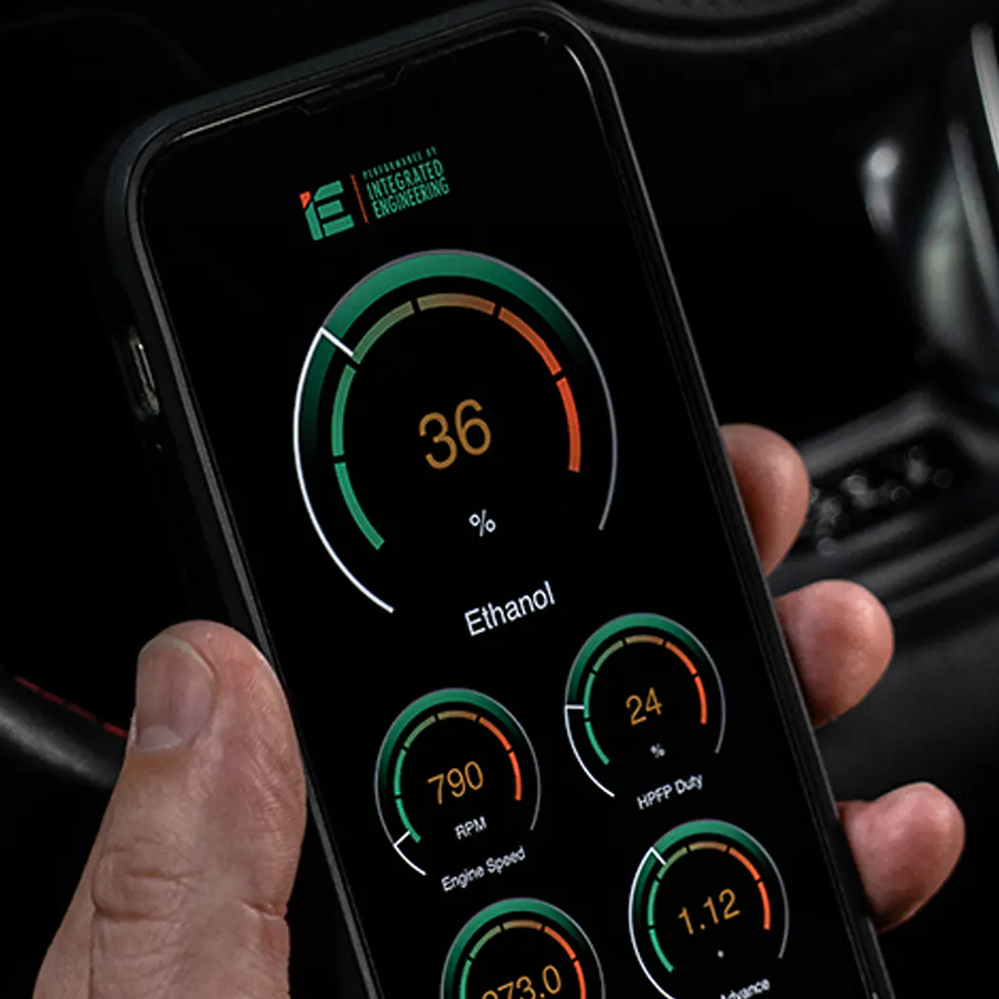

LIVE GAUGE DISPLAY

OCTANE SWITCHING

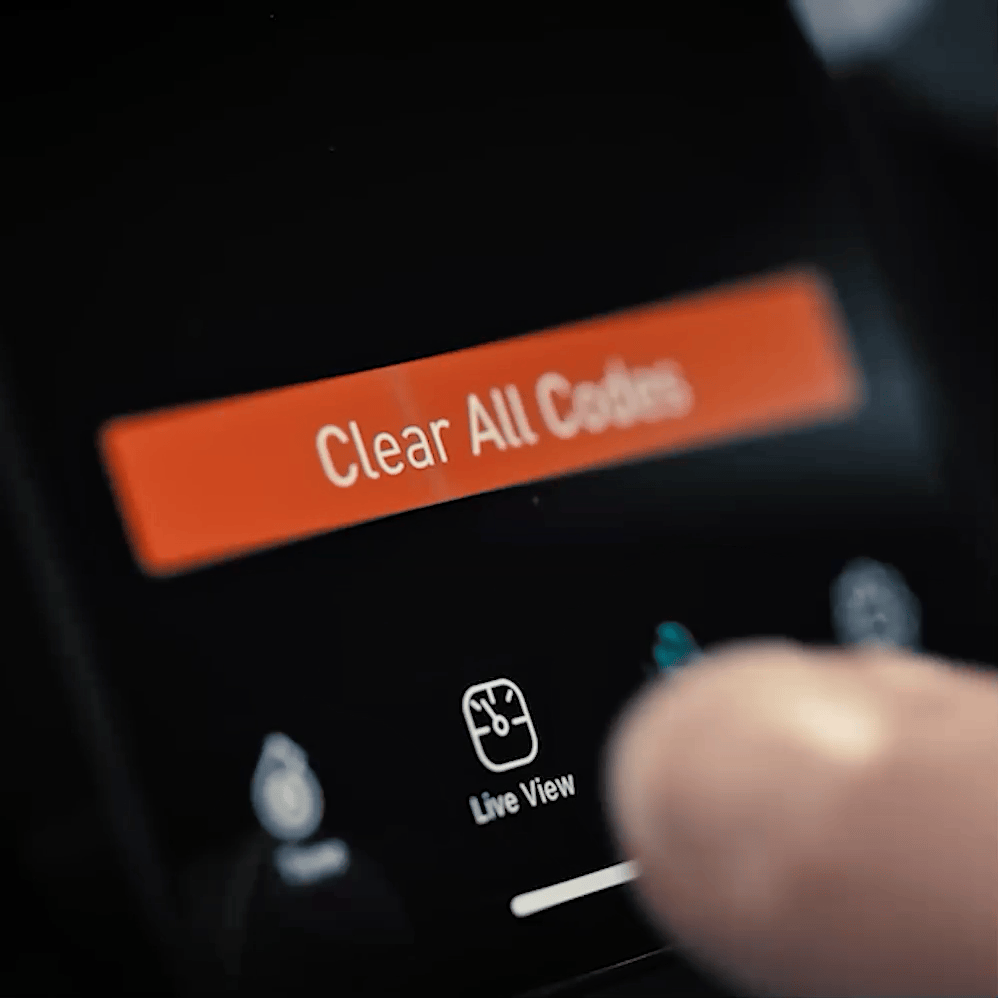

DIAGNOSTIC TOOLS

Add power to your Audi and experience the game-changing freedom of mobile flashing. The IE POWERlink cable and app connect to your Apple or Android phone, giving you the power to tune your car, change octanes, upgrade stages, perform diagnostics, monitor live gauge data, and more. All from the palm of your hand!

Add power anytime, anywhere
no laptop, no cord, no hassle.

BLUETOOTH
FLASHING

LIVE GAUGE
DISPLAY

OCTANE
SWITCHING

DIAGNOSTIC
TOOLS

" The flash install was super easy
-Jackson

" Extremely user friendly
-Matt R

" You won’t regret it
-Andres

IMPORTANT INFORMATION

TUNE UPDATES
Your tune purchase entitles you to free updates to any tune revisions, new octanes, standard features, or software updates. In the event the original vehicle manufacturer issues an ECU update, this will also be included to you through IE at no additional charge.

POWERLINK VINS
Have multiple cars in the family or friends that are also ready for an IE Tune? Your POWERlink Flash Tool can be used on up to 5 different vehicle VINs. Tunes sold separately.

TUNE REGISTRATION
Once a tune purchase is applied to your vehicle's ECU, the tune is permanently registered to the vehicle and non-transferable to other vehicles. Tunes can be transferred to a second party in the event of vehicle transfer of ownership only.

ROW (REST OF WORLD) SUPPORT
Although IE does offer ROW purchases of software files, some ECUs available only in certain countries or markets may not be supported in our current file library. If you have access to read your ECU code, please contact us to verify compatibility before purchase.

ENGINE SPECS

ENGINE FAMILY

EA888 GEN 3

CYLINDERS

4

INDUCTION

Turbocharged

DISPLACEMENT

2.0L

ORIENTATION

Transverse

FUEL

Gasoline (AKI / RON)

AVAILABILITY

North America (NAR) & limited availability in Rest of World (ROW)

FIVE-STAR SUPPORT

IE's number one goal from purchase to installation is to provide you with the best customer experience in the industry. We want what you want; a simple purchase process, products that exceed expectations, and a brand that's got your back. If at any point you have any questions, need help, or require support with your new tune our educated customer support team and tuning specialists are standing by and happy to help. Purchasing an IE tune not only guarantees a quality product, but that you will always have us in your corner.

Live Fast, Buy Fun

Having some trouble? Don't worry, our team of tuning specialist are here to help. Fill out the form on our Support Page to start a ticket.

" Customer service is second to none!
-Zach

" Earned a customer for life
-Brenton

" A+++
-Sonny T


average rating 4.9 out of 5
Based on 116 reviews
  • 5 Stars
    108 Reviews
  • 4 Stars
    5 Reviews
  • 3 Stars
    2 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    1 Review
97% of reviewers would recommend this product to a friend
Fitment
Rated 5 out of 5
Quality
Rated 5 out of 5
Value
Rated 4 out of 5
Ease of Use
Rated 5 out of 5
Performance
Rated 5 out of 5
116 Reviews
Reviewed by Carlos B.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Stage 2 low torque files

Very happy with the results. Like everyone says the car should have came like this. Next is hpfp and flex fuel.

Loading...
Fitment
Rated 5 out of 5
Quality
Rated 5 out of 5
Value
Rated 5 out of 5
Ease of Use
Rated 5 out of 5
Performance
Rated 5 out of 5
Was this helpful?
Reviewed by vennesa f.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Dummy proof tune

I went back and forth about where to get my tune from and I’m so glad I chose IE. It was super simple and has made a HUGE difference and I have fallen back in love with my car!!!

Loading...
Fitment
Rated 5 out of 5
Quality
Rated 5 out of 5
Value
Rated 5 out of 5
Ease of Use
Rated 5 out of 5
Performance
Rated 5 out of 5
Was this helpful?
Reviewed by Will
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Easy install, Easy Benefits 😬

Purchased ECU and TCU tunes, running Stage 1 High Torque and TCU tunes while I wait on DP.

Night and day difference and the install took about 45 minutes in total via Cellphone and Bluetooth (assuming you have good service to download initial files).

Fast connection and gauges may be useful with the data logging feature when you want to see what’s going on during your drive.

Highly recommend and their customer service was very quick to respond to questions, which made my decision easier and eased my concerns. Will go full IE Bolt ons soon.

Loading...
Fitment
Rated 5 out of 5
Quality
Rated 5 out of 5
Value
Rated 5 out of 5
Ease of Use
Rated 5 out of 5
Performance
Rated 5 out of 5
Was this helpful?
Reviewed by Adrian
I recommend this product
Rated 5 out of 5
Review posted

5 Stars

Awesome and great quality

Loading...
Was this helpful?
Reviewed by JED J.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Stage 3 Tune!

Love the tune! These guys really know how to make a VW run. Can't wait to add the flex fuel sensor and try out E40 fuel in the R! Keep up the great work!!

Loading...
Fitment
Rated 5 out of 5
Quality
Rated 5 out of 5
Value
Rated 5 out of 5
Ease of Use
Rated 5 out of 5
Performance
Rated 5 out of 5
Was this helpful?
