The IE Polymer Air Intake System delivers performance, sound, and style to your Audi B9/B9.5 A4 or A5 2.0T engine. Our specialty polymer construction maintains low intake air temps and brings an affordable motorsport design to your engine bay. Enjoy easy power gains and turbo noise without sacrificing quality.
HIGH-QUALITY
POLYMER
CONSTRUCTION
FLOW OPTIMIZED
VELOCITY STACK
MOTORSPORT DESIGN
UP TO
+10-20HP
POWER YOU CAN FEEL
- FEATURES
- PERFORMANCE
- INSTALLATION
LEADING FEATURES
- Rotomold polymer for superior heat resistance
- Up to 10-20HP over stock (with software)
- Increased turbo & engine sounds
- Massive 5" air filter for excellent flow
- Integrated velocity stack for smooth air transitions
- High pressure & low pressure air zones
- Factory style mounts for reliable & easy installation
- All stainless hardware
- Powder-coated aluminum filter plate & velocity stack
- Stainless laser-etched logo plate

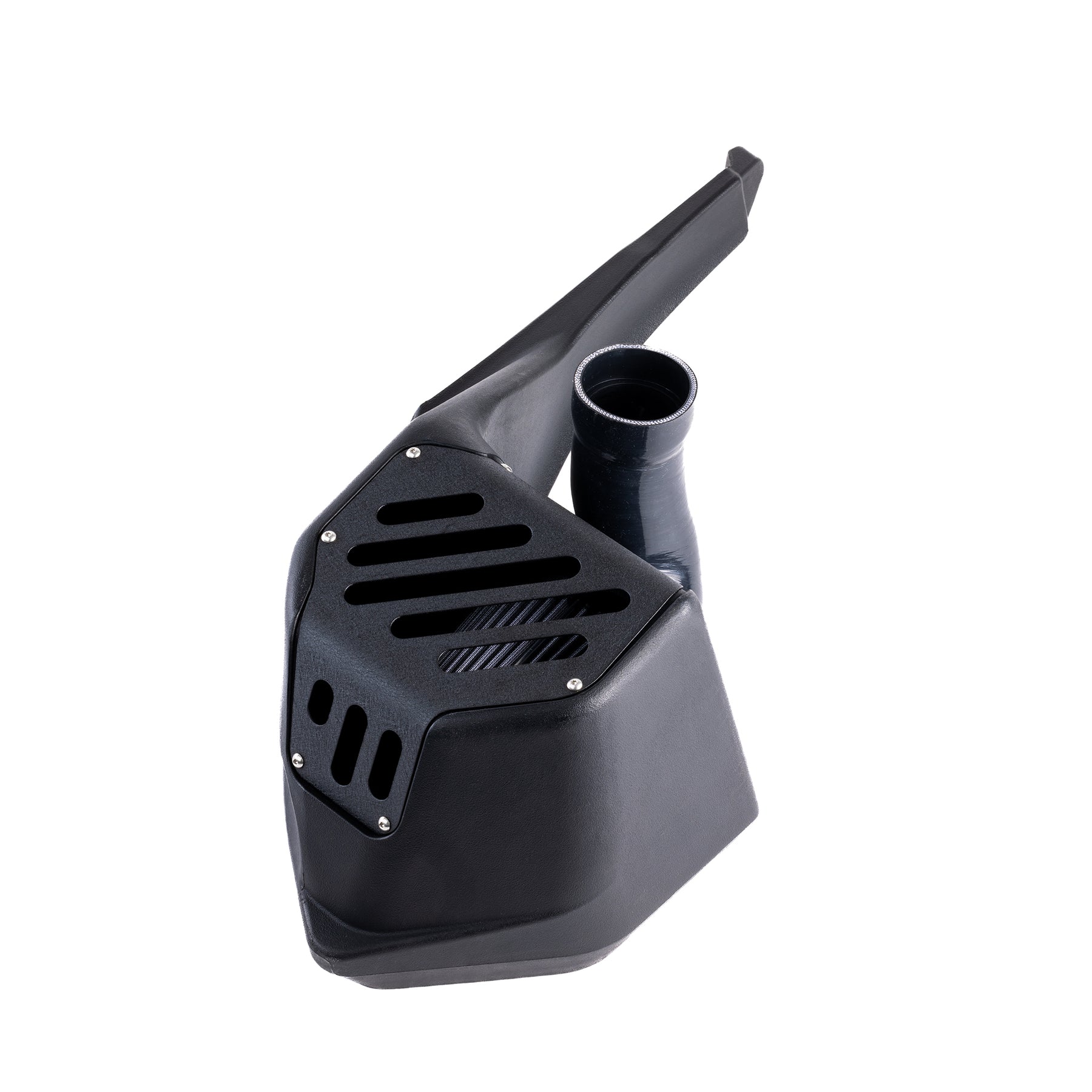

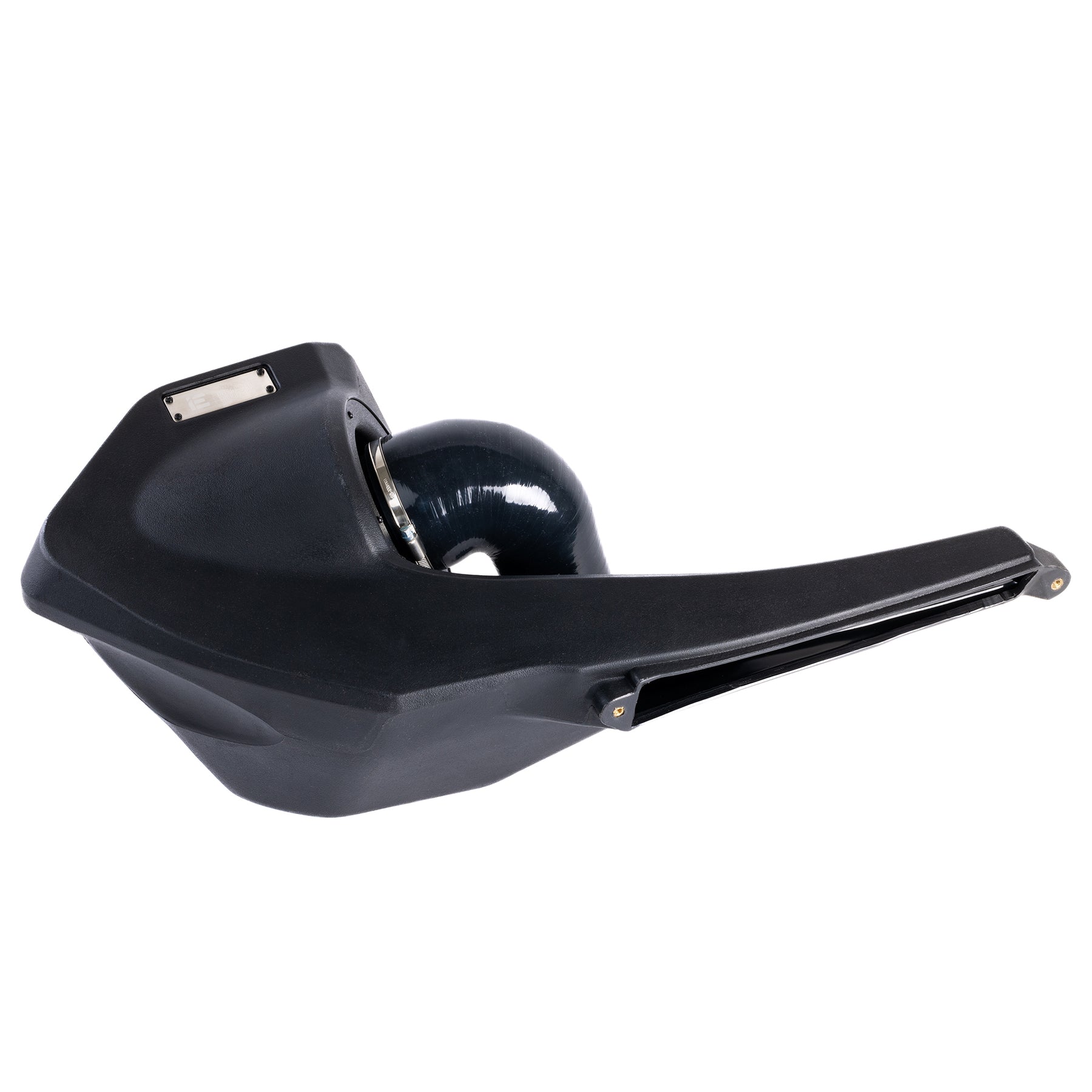

THE QUALITY POLYMER INTAKE
This cold air intake is manufactured from a high-quality rotomold procedure that produces a superior plastic material with consistent wall thickness, strong corners, and excellent heat resistance. Enjoy a proper motorsport-designed intake system without compromise.
PERFORMANCE FIRST
The internal volume of the intake and its complex shapes are the results of application-specific engineering for the Audi B9 platform. Every inch has been performance designed to feed your turbocharger with the most airflow possible.
THROTTLE DOWN, SOUND ON
The stock airbox on your Audi A4 or A5 2.0T has been manufactured to silence all engine and turbo sounds at any performance cost. Upgrading your air system with an IE polymer intake will release a symphony of engine throttle, spool, and blow-off sounds that will be music to your ears.

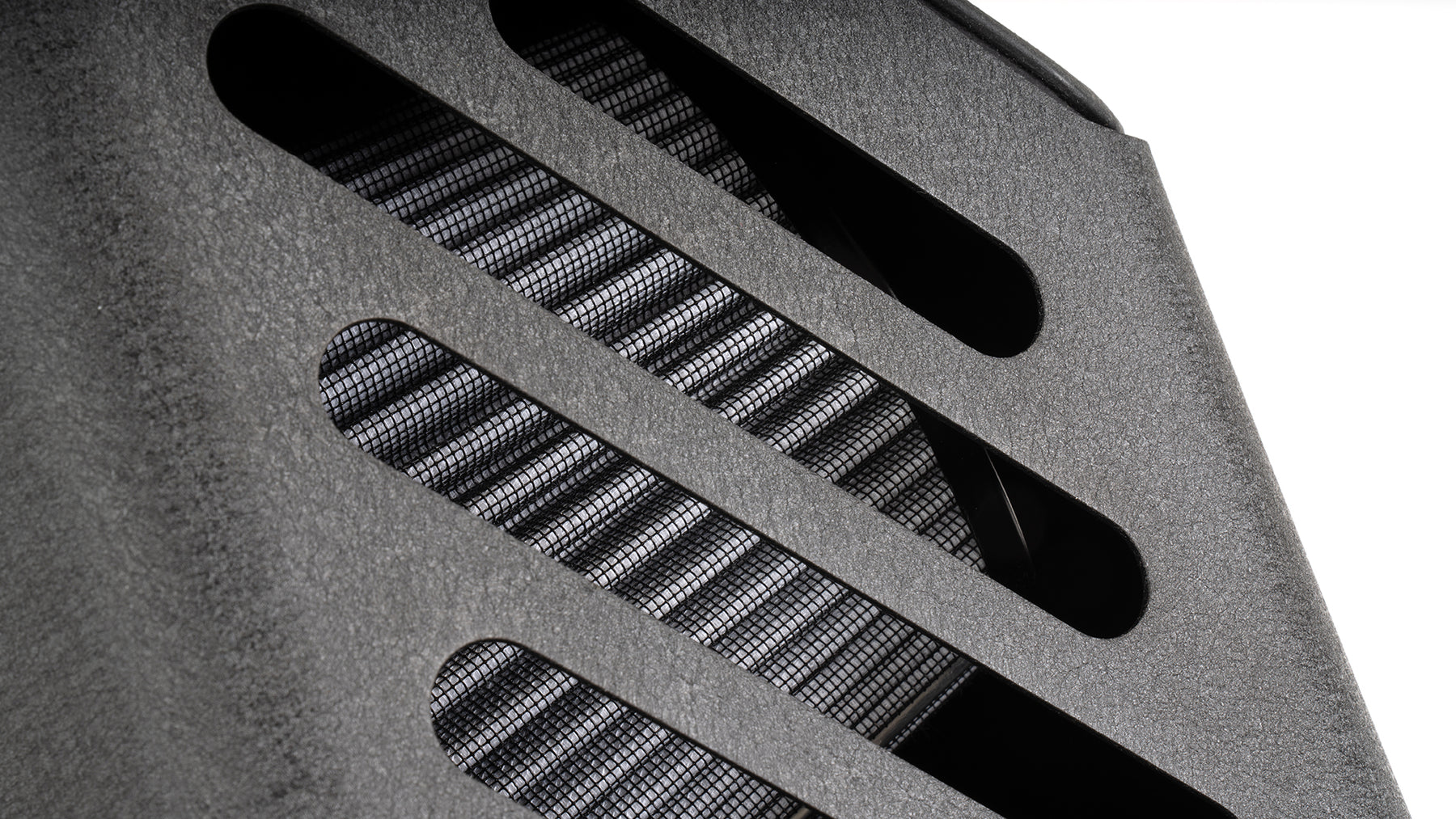

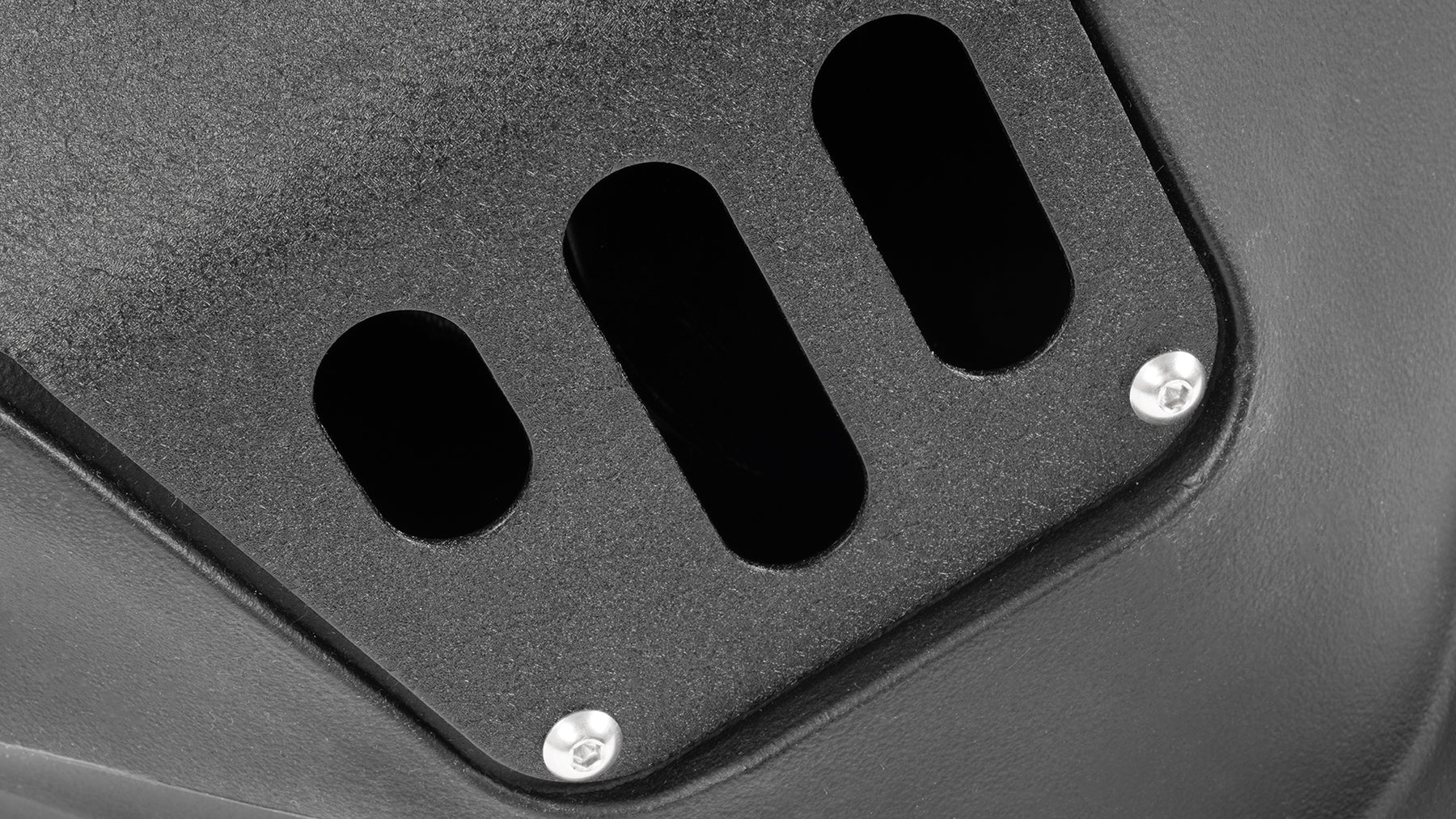

MULTIPLE PRESSURE ZONES
This intake features high and low pressure zones to feed the turbocharger and engine demands for any power goal. The majority of fresh air supply is supplied to the filter from the grill. If additional air demands are required, the intake will pull low-pressure air through the filter cover as needed.

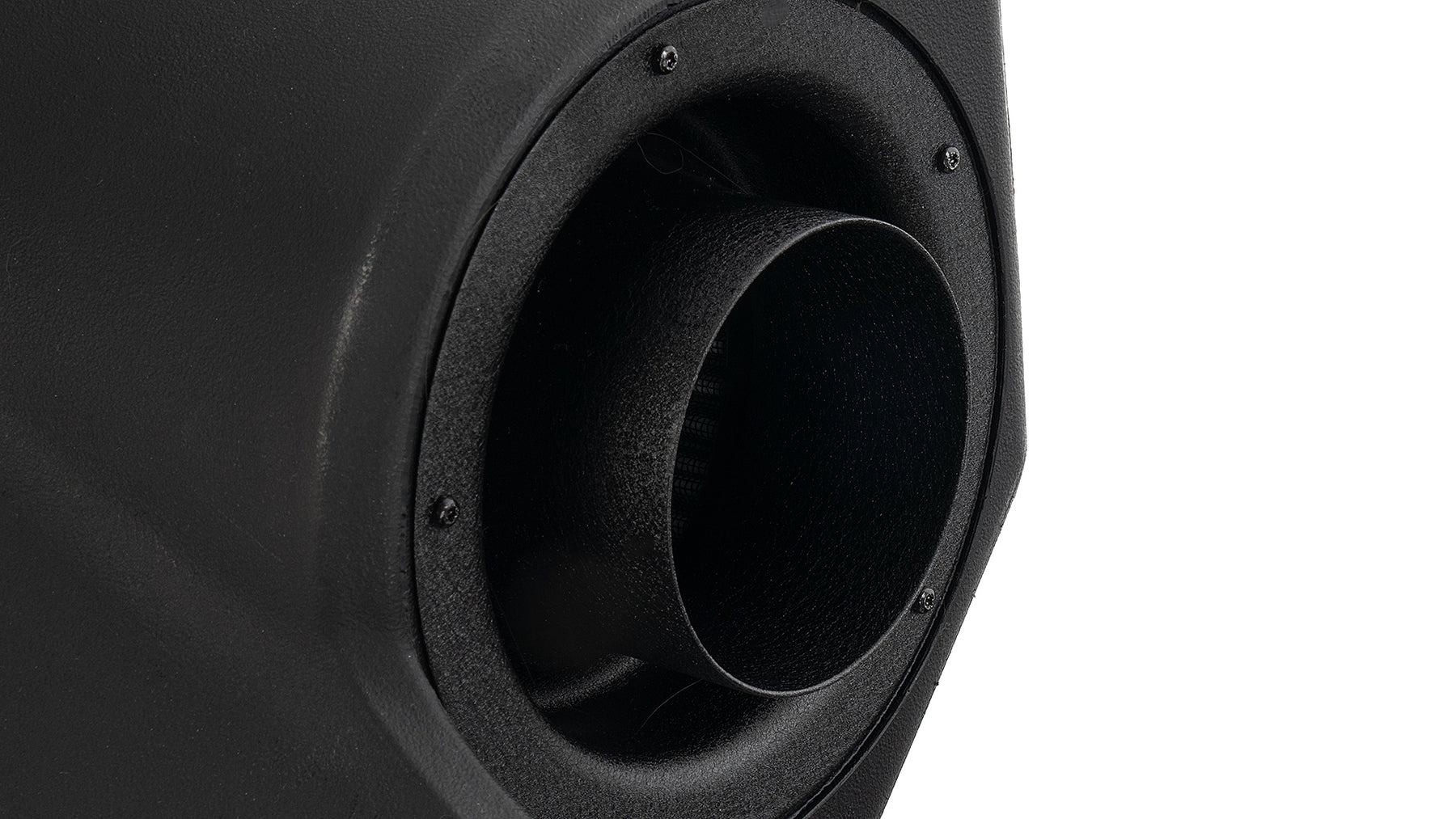

BUILT-IN VELOCITY STACK
The integrated velocity stack smooths the airflow from the large filter into the charge system with excellent laminar properties. This powerful design detail results in a very high inertia flow with reduced drag and power-robbing turbulence at the critical point as air enters the turbocharger.
PRECISION DESIGN
3D scanning tools are leveraged to create a high-resolution digital environment allowing our engineers to take advantage of all available space for a complete performance design while ensuring a hassle-free install.
POWER RESULTS
Countless design revisions, rapid prototyping, flow bench testing, dyno runs, and real-world verification has resulted in a performance intake design with power gains of up to 10-20HP on tuned engines!
FLOW BENCH TESTING
Back-to-back flow bench testing details consistent airflow gains of up to +70 CFM over stock! This increase shows efficiency over the factory parts and capability to provide increased airflow demands from ECU tunes and performance hardware upgrades.
FLOW REPORT
| -IN. H20 | STOCK INTAKE | IE INTAKE SYSTEM |
| -5 | 197 CFM | 227 CFM |
| -10 | 285 CFM | 330 CFM |
| -15 | 356 CFM | 407 CFM |
| -20 | 414 CFM | 473 CFM |
| -25 | 465 CFM | 530 CFM |
| -30 | 516 CFM | 586 CFM |
The above gains are a result of various design details:
- The 5" air filter surface area and increased air volume improve turbo efficiency.
- The internal velocity stack provides a low-turbulence transition from the filter to the inlet.
- High & low-pressure zones channel low-temp airflow quickly to the engine while protecting it from radiant engine heat.
To learn more about our performance design, click the features tab above.

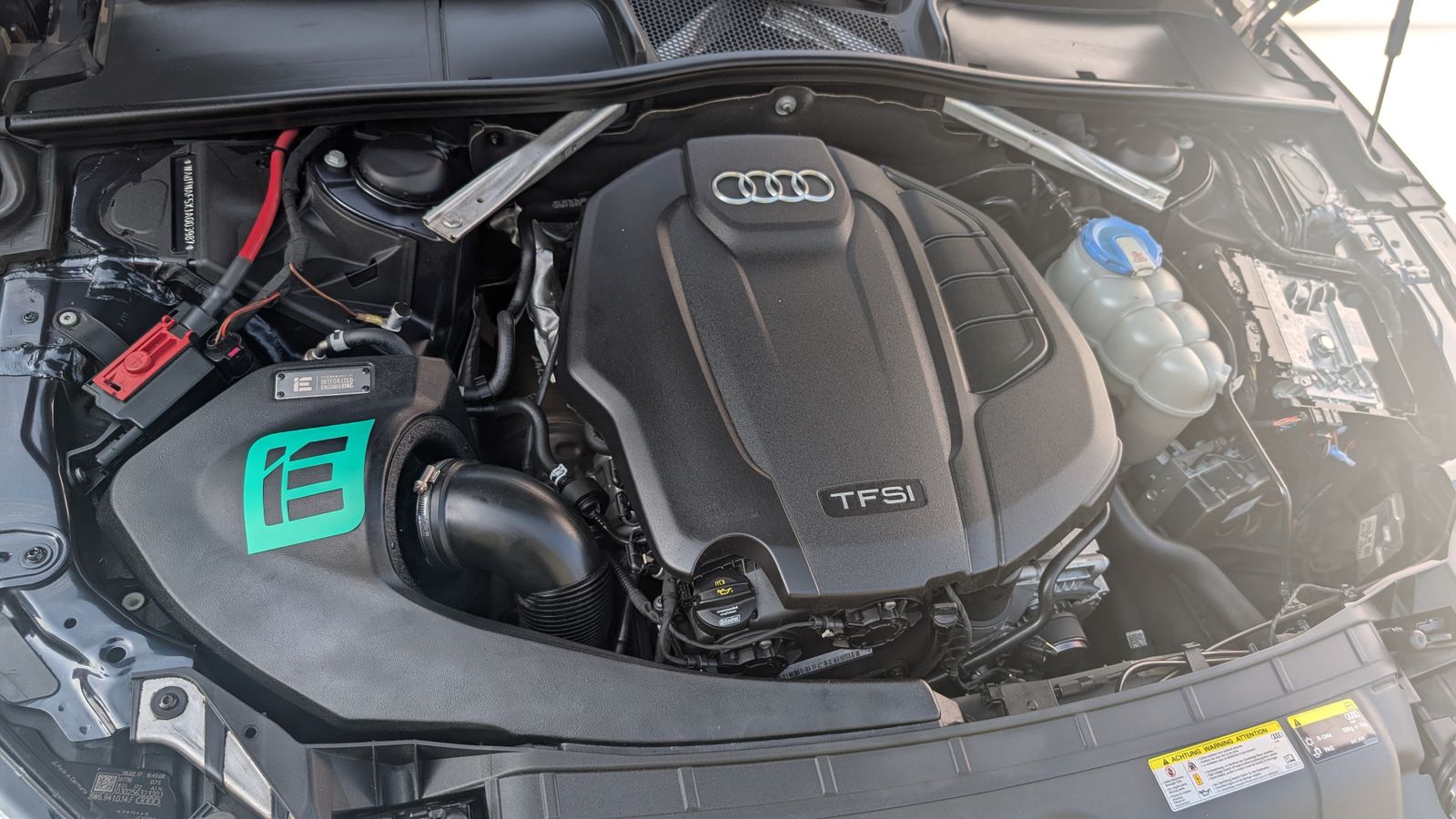

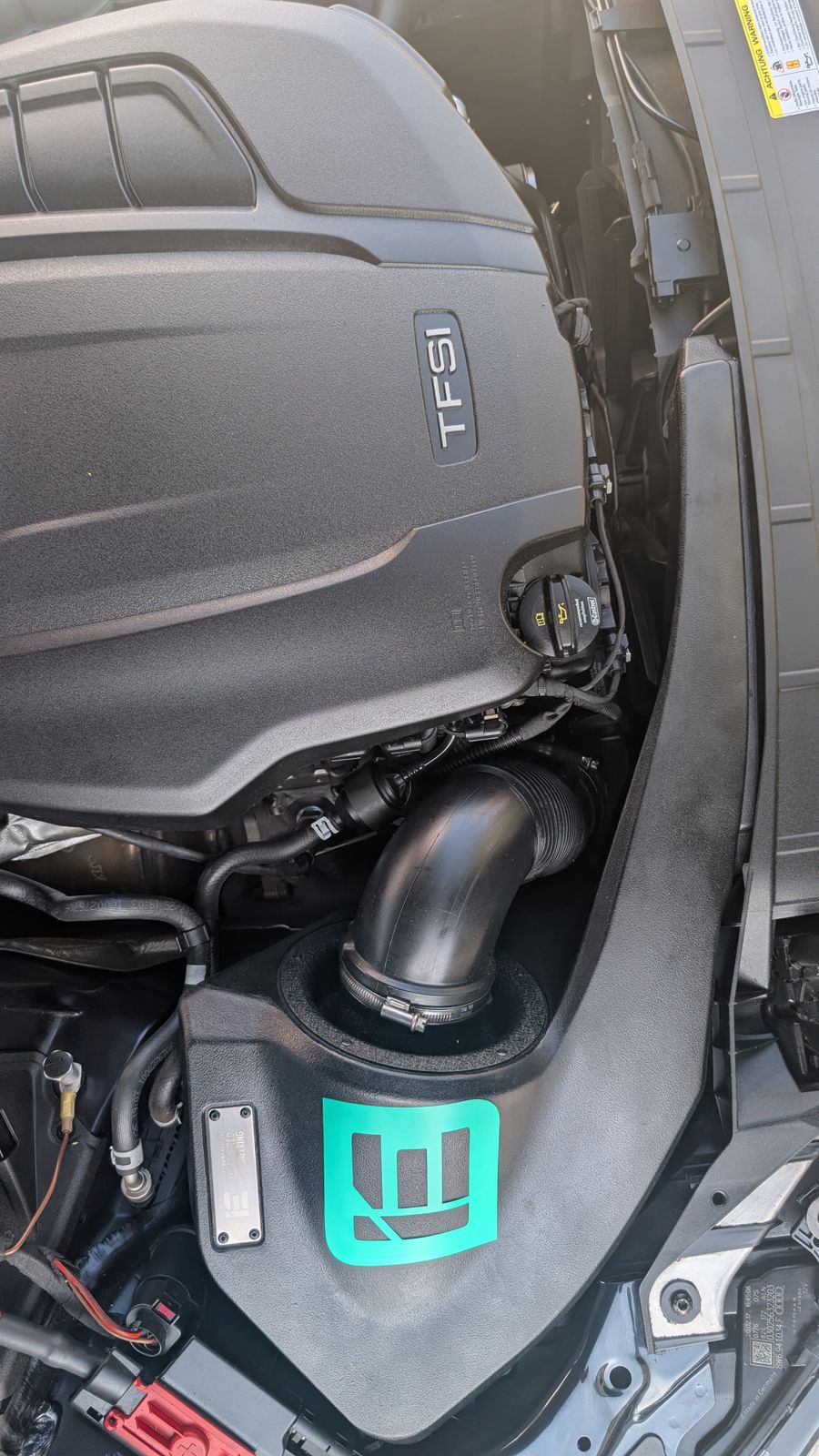

EASY INSTALLATION
Install your new air intake with basic hand tools in only minutes. Our polymer intake is a direct factory upgrade with stock-style mounts for a perfect, hassle-free installation.
Install time: 20-30 minutes
VEHICLE FITMENT GUIDE
| MAKE | MODEL | YEAR | ENGINE |
| AUDI | A4 | 2017-2024 (B9/B9.5) | 2.0T Turbocharged |
| AUDI | A5 | 2018-2024 (B9/B9.5) | 2.0T Turbocharged |
NOTE: This IE intake system does not fit ROW vehicle engines equipped with a MAF sensor. Please verify before ordering.
