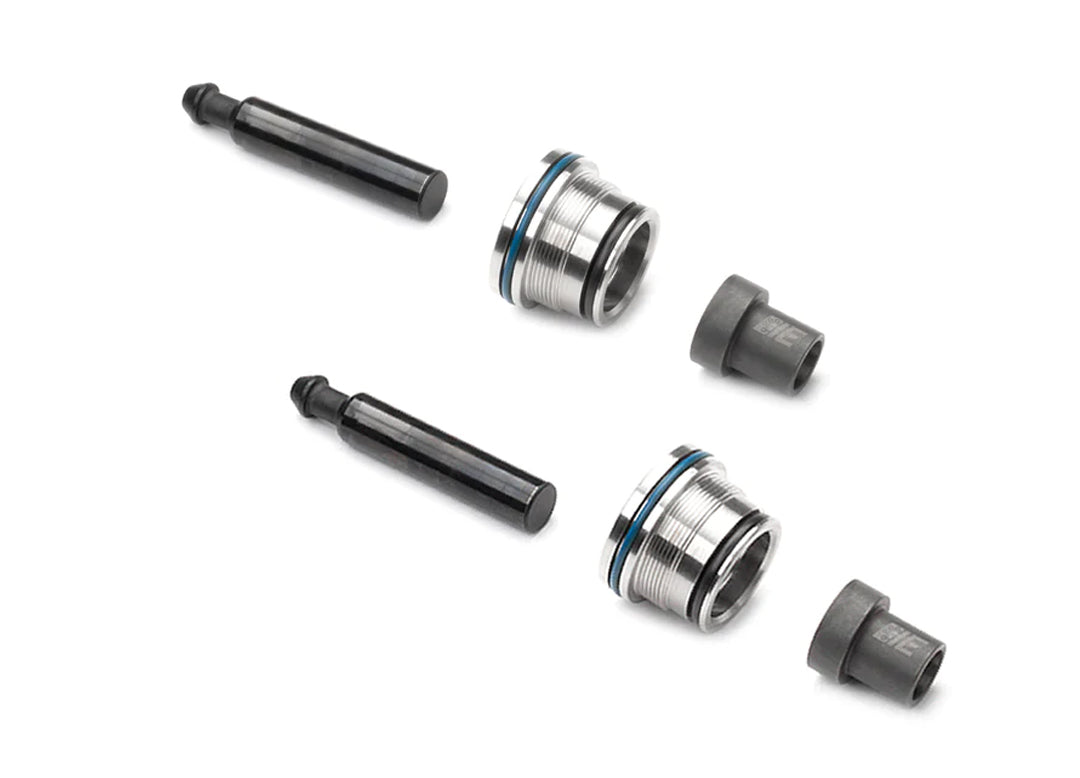

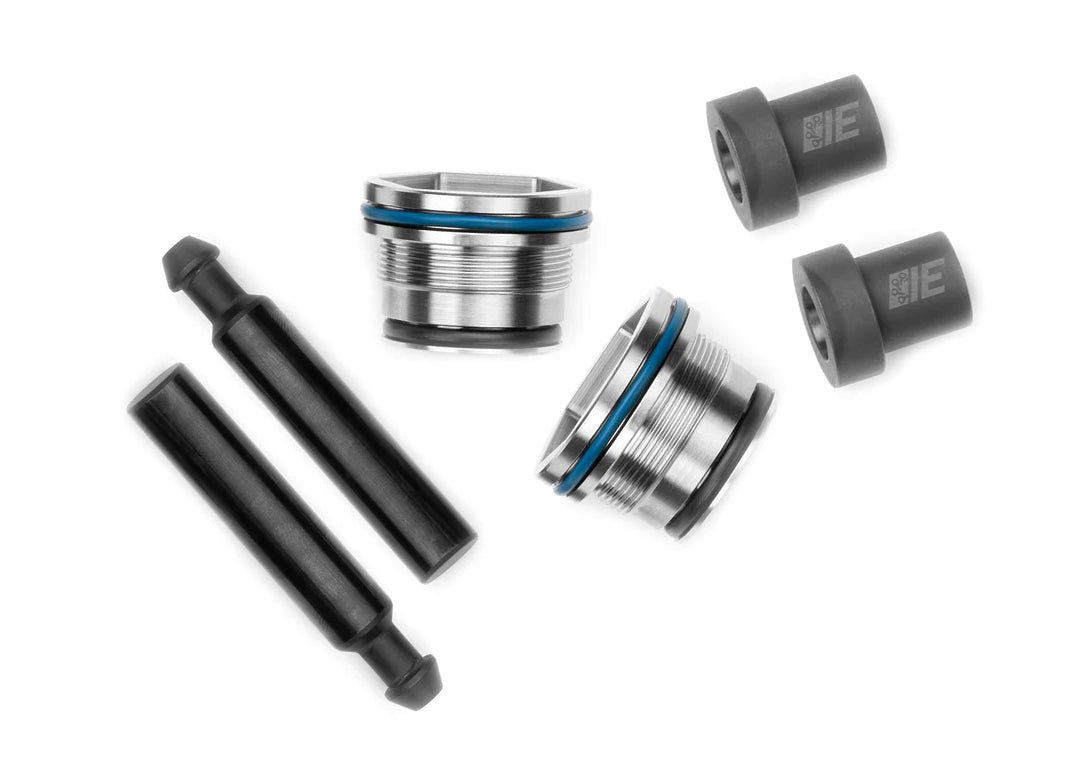

• Two sets of HPFP internal kits to upgrade your stock pumps
• Reliably adds a larger fuel ceiling for increased flow
• Piston diameters increased to 11.67mm
• Largest stroke volume available
• Broken-in and bench tested on in-house pump dyno
• Constant diameter piston design for long-life operation
• Retains OE spring & retainer to avoid increased camshaft wear
• Tool steel DLC coated pin
• Nitrided tool steel cylinder
• Molybdenum disulphide impregnated leak-free seal
• Stainless steel seal body
• Buna-N rubber oil resistant o ring
• Individually tested and verified for extreme tolerances

The 4.0TT's high-pressure fuel pumps supply high-pressure fuel (exceeding 2900psi each) to the direct-injeciton fuel system injectors. When running turbo upgrades, especially with ethanol fuel blends, the stock HPFPs internal volumes become a limiting factor when increasing power. IE's HPFP internals install into your factory pump housings and increase the bore and piston size of the pump internals, allowing more flow, delivering more fuel, and allowing for more horsepower & torque from your hardware and tuning upgrades.

Flow testing was performed to measure the increase in flow rate which produced a maximum result of 38.58% gain over stock!

Every piston and cylinder is CNC machined to exacting sizes, assembled, and measured as a matching set in-house. Tolerances are hand-verified using specialized measurement tools and verified down to 0.00005 of an inch to ensure reliability and proper function.

Engineered & manufactured in the USA

Many aftermarket HPFP options use a stepped-diameter piston in a cost-saving effort to reuse the already weak and problematic factory seal. A stepped design dramatically reduces the contact between the pin and cylinder, causing instability of the pin stroke leading to increased wear. IE assemblies use a constant diameter pin which maintains its larger size through the entire piston shaft. This engineering detail increases the contact between the pin and cylinder by over 50%, increasing pin stability and an even greater displacement.

DLC (diamond-like carbon coating) is applied to the tool steel piston to increase surface hardness, reduce friciton, and provide excellent wear resistance from it's self-lubricating properties. This advanced coating drastically extends piston and pump life.

The pin cylinder is subject up to 19000 strokes a minute and is lubricated by fuel only. To provide long life and withstand this torture, our tool steel cylinder is nitrided. This advanced process infuses nitrogen atoms into the atomic structure of the outer surface of the component, increasing surface hardness and wear properties drastically. The thickness and quality of every nitride cylinder is independently verified by a specialty lab.

A CNC machined stainless steel pump body holds our molybdenum disulphide seal, which is ideal for reducing friction and maintaining stiffness. The seal is spring energized to increase reliability and provide constant outward pressure. The body is sealed to the pump with a quality Buna-N (acrylonitrile butadiene) rubber o ring, ensuring it will hold up against heat and a wide range of fuels. What may seem like minor features add up to ensure long life and trouble-free operation.

Our Audi C7 4.0TT HPFP designs are verified and torture-tested on our own application-specific fuel pump dyno. This machine is able to replicate countless miles and various RPM situations to substantiate every detail of the HPFP design. This strict engineering process, combined with our 100% in-house CNC machining, obsessed quality control, and top-shelf components is why IE HPFP Kits have earned their esteem and reputation for reliability.
