LEADING FEATURES
- Bolt-in upgrade for factory MK7/8V turbochargers
- GTX (gen 2) compressor wheel aerodynamics
- Cast aluminum compressor housing
- Mar-M alloy turbine wheel
- Stainless steel twin-scroll turbine housing
- 360 degree reinforced thrust bearing
- 17% higher flow than factory IS38 (Golf R/S3) turbo
- Assembled in Japan
GARRETT POWERMAX

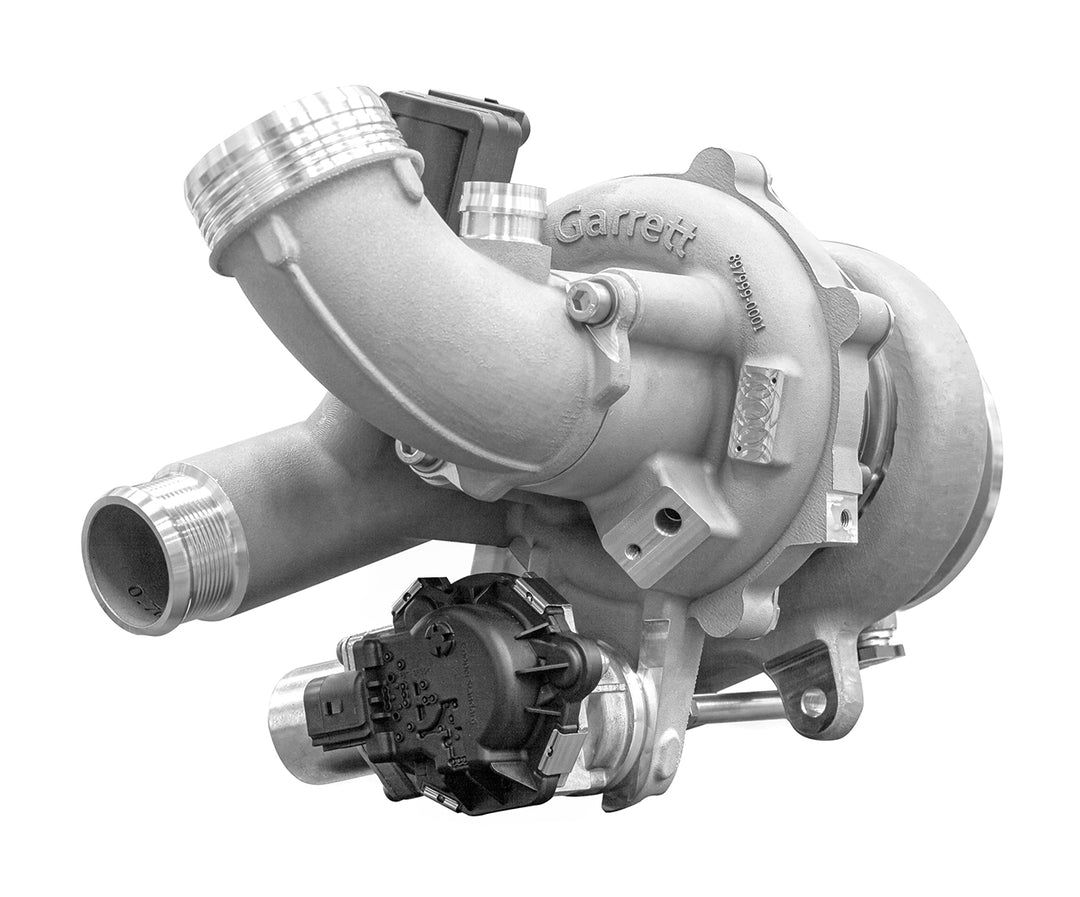

Garrett engineered the PowerMax GT2260S Turbocharger as a direct bolt-in upgrade specifically for the VW and Audi MK7 & 8V (MQB) platform, meeting all the criteria that iE calibrators value for the ideal street turbo. Paired with our advanced Stage 3 tuning, this turbo provides 450-485HP, a wider powerband, smooth power delivery, and responsive boost with negligible lag compared to stock. Experience a serious punch in power and addicitng pull -without sacrificing your daily street manners.
iE STAGE 3 TUNING SOLD SEPARATELY
INCLUDED COMPONENTS
- Complete GT2260S turbocharger
- Proprietary cast turbo inlet pipe
- Diverter Valve
- Wastegate assembly
Note: The Garrett GT2260S is a direct bolt-on replacement for the factory turbocharger and accepts all factory bolts, gaskets, etc. Garrett does not include replacement gasket and bolt parts with the turbo; we highly recommend purchasing a complete MK7 turbo gasket/install kit before installing your new PowerMax upgrade.
STAGE 3 TUNING
Garrett's PowerMax turbo is a substantial upgrade over stock and requires significant ECU calibration updates. iE Stage 3 is the ultimate tuning suite for the Garrett GT2260S Turbo, transforming your 2.0T engine with significant peak power gains and an extended powerband that maintains boost at higher RPMs. Gain a competitive edge with our innovative TrueFlex programming for effortless ethanol blends and the ultimate driving experience.
UPGRADE GUIDE
The GT2260S turbocharger delivers a significant increase in power, necessitating essential upgrades in both hardware and tuning. This includes enhancing airflow, reducing exhaust restrictions, adding fueling capacity, and improving cooling. These upgrades are crucial for ensuring optimal operation, performance, and reliability.
PART UPGRADE | REQUIREMENT |
REQUIRED | |
REQUIRED | |
REQUIRED | |
TURBO INLET PIPE | NOT COMPATIBLE |
REQUIRED | |
REQUIRED | |
OPTIONAL | |
REQUIRED | |
CATBACK EXHAUST | OPTIONAL |
The Garrett GT2260S Turbocharger includes a proprietary turbo inlet pipe and is not compatible with iE/aftermarket inlet pipes or turbo muffler deletes.
FITMENT GUIDE
The following fitment guide is listed for MQB platform vehicles that have matching iE Stage 3 GT2260S ECU calibrations available.
MAKE | MODEL | YEAR | GENERATION |
VW | Golf R | 2015-2017 | MK7 |
VW | GTI | 2015-2021 | MK7 |
VW | GLI | 2015-2022 | MK7 |
AUDI | S3 | 2015-2017 | 8V |
AUDI | A3 (2.0T AWD only) | 2015-2021 | 8V |
Fitment / tuning restrictions:
-2018-2021 model year Golf R & S3 iE Stage 3 Tuning is currently in development.
-Stage 3 tuning is not currently available for 2023-2024 GLI models.
-Incompatible with FWD Audi A3 engines.
-Incompatible with many Audi TT/TTS ECUs, please contact us to verify ECU code before purchase.
-Stage 3 may not be fully supported for all Rest-Of-World (ROW) ECUs (Europe, Asia, Australia, etc.), please contact us to verify before purchase.
TECH SPECS
COMPRESSOR:
- Inducer: 47mm
- Exducer: 60mm
- Trim: 62
- A/R: 0.70
- Flow: 42 lbs/min
TURBINE:
- Inducer: 50mm
- Exducer: 45mm
- Trim: 81
- A/R: 0.64
- Flow: 16 lbs/min
